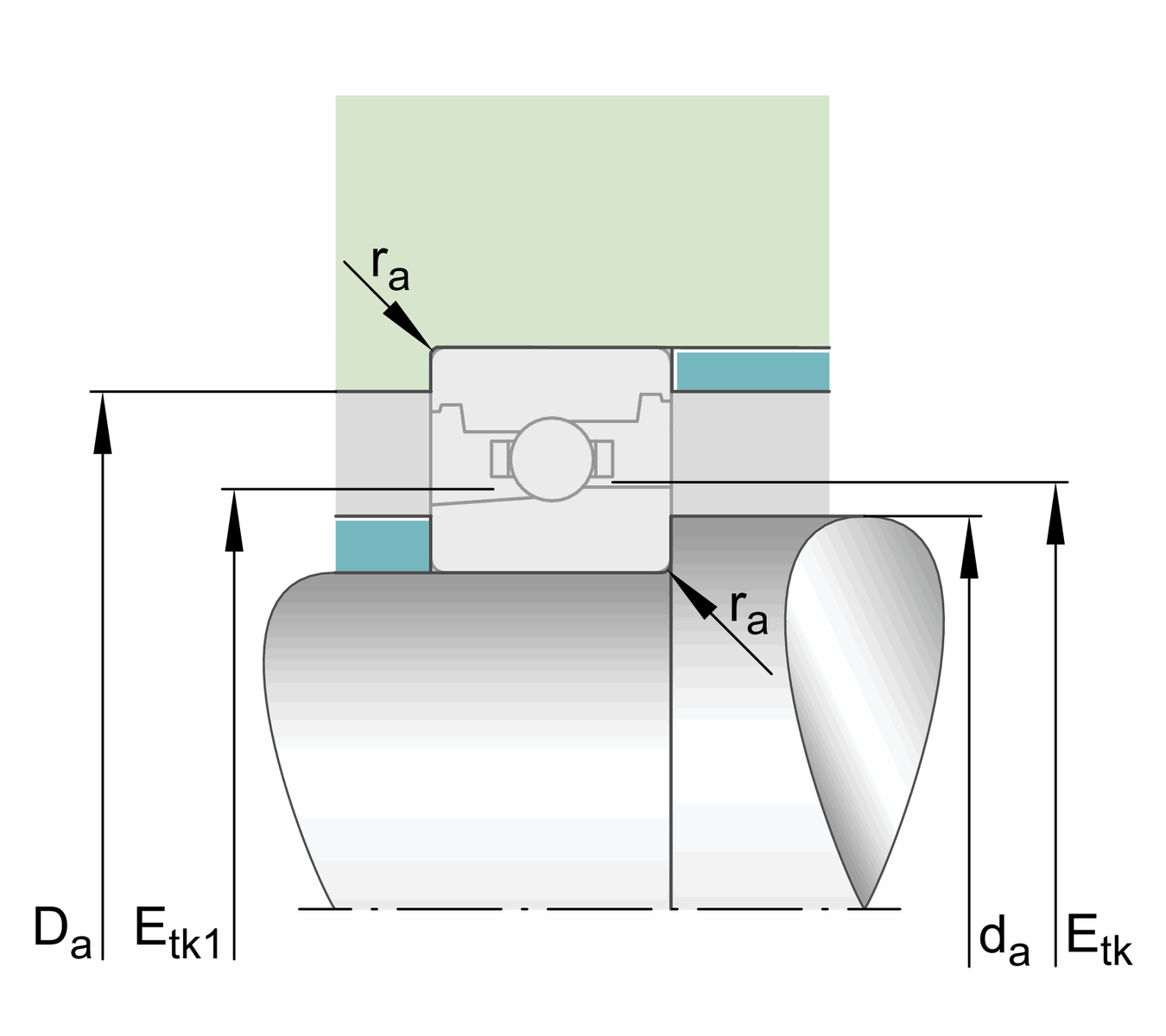

da
|
21
|
mm Shaft shoulder diameter
|
rmin
|
0.3
|
mm Minimum chamfer size
|
dah
|
12
|
Shaft shoulder clearance diameter
|
r1min
|
0.3
|
mm Minimum chamfer size
|
α
|
15
|
° contact angle
|
D a
|
32
|
mm Diameter of outer ring shoulder
|
DaH
|
12
|
Outer ring clearance shoulder diameter
|
ra max
|
0.3
|
mm Maximum cavity radius
|
ra1 max
|
0.1
|
mm Maximum cavity radius
|
E tk min
|
24.1 mm
|
Minimum injection pitch diameter
|
E tk max
|
24.8 mm
|
Maximum injection pitch diameter
|
E tk1 min
|
22.9 mm
|
Minimum injection pitch diameter
|
E tk1 max
|
24.8 mm
|
Maximum injection pitch diameter
|
a
|
8.5
|
Top distance of pressure cone
|
