Main Dimensions & Performance Data

d

 203.2 mm

d(Inch)

 203.2 Inch

D

 215.9 mm

B

 6.35 mm

Cr

 5400 N

Cor

 10200 N

Limiting speed

 2700 rpm

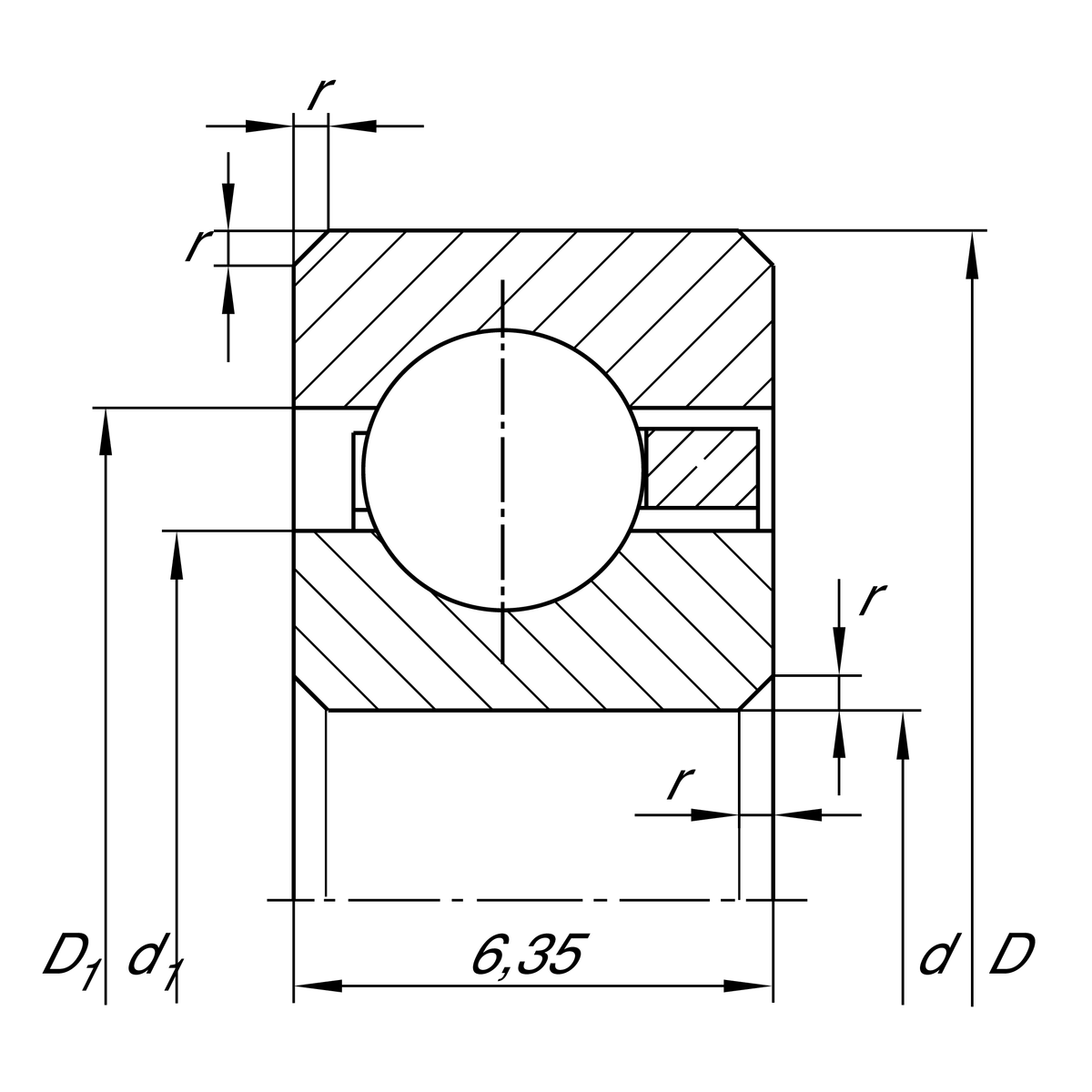

Mounting dimensions

r min

 0.6 mm Minimum chamfer dimension ,

d 1

 207.9 mm Shoulder diameter inner ring

D 1

 211.2 mm Shoulder diameter outer ring

Temperature range

T min

 -30 °C Operating temperature min.

T max

 120 °C Operating temperature max.
