Main Dimensions & Performance Data

d

 203.2 mm

d(Inch)

 203.2 Inch

D

 228.6 mm

B

 12.7 mm

Cr

 15800 N

Cor

 23300 N

Limiting speed

 2550 rpm

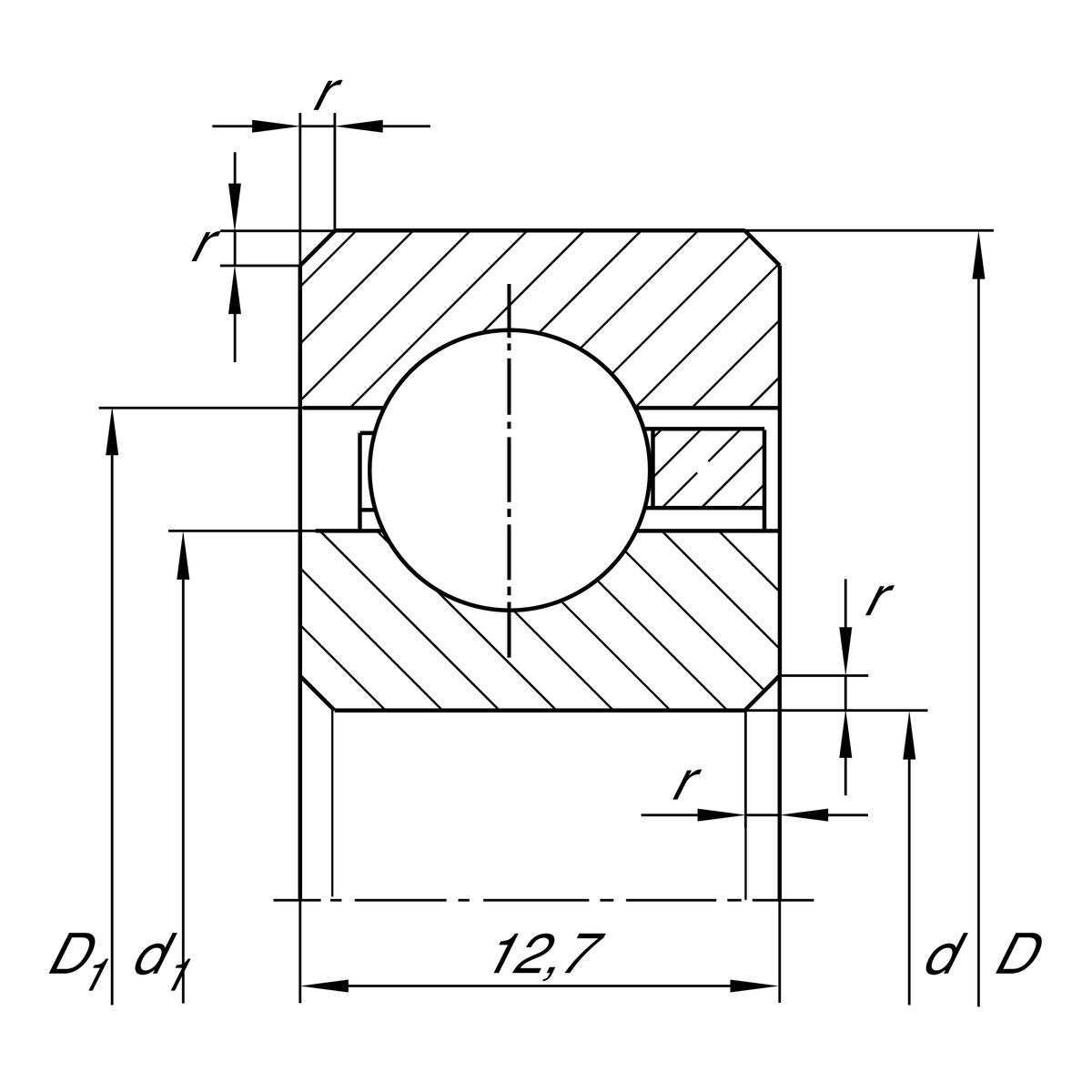

Mounting dimensions

r min

 1.5 mm Minimum chamfer dimension ,

d 1

 212.6 mm Shoulder diameter inner ring

D 1

 219.2 mm Shoulder diameter outer ring

Temperature range

T min

 -30 °C Operating temperature min.

T max

 120 °C Operating temperature max.
