Main Dimensions & Performance Data

d

 203.2 mm

d(Inch)

 203.2 Inch

D

 254 mm

B

 25.4 mm

Cr

 48000 N

Cor

 57000 N

Limiting speed

 2320 rpm

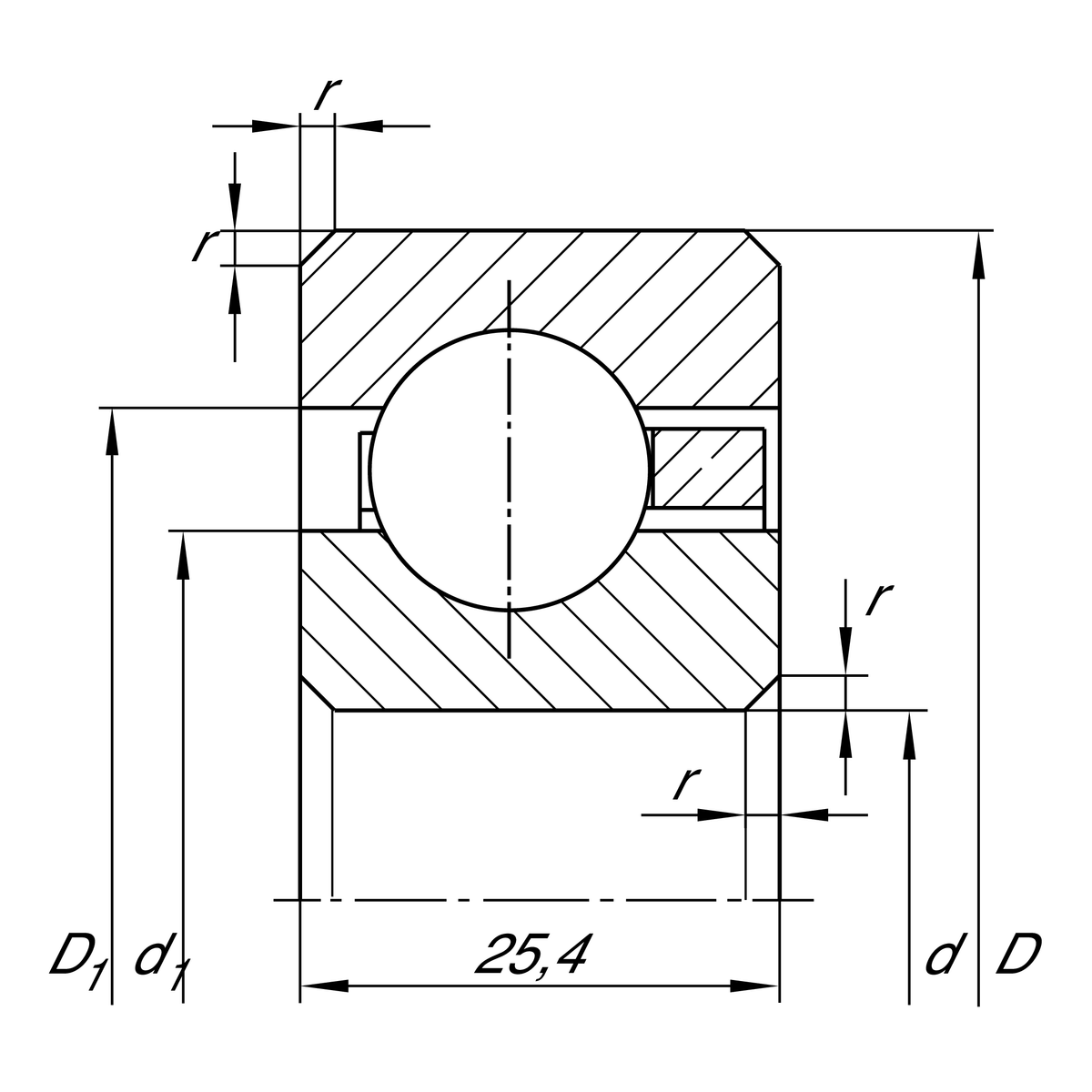

Mounting dimensions

r min

 2 mm Minimum chamfer dimension ,

d 1

 222.1 mm Shoulder diameter inner ring

D 1

 235.2 mm Shoulder diameter outer ring

Temperature range

T min

 -30 °C Operating temperature min.

T max

 120 °C Operating temperature max.
