Main Dimensions & Performance Data

d

 203.2 mm

d(Inch)

 203.2 Inch

D

 222.25 mm

B

 12.7 mm

Cr

 10000 N

Cor

 16200 N

Limiting speed

 1290 rpm

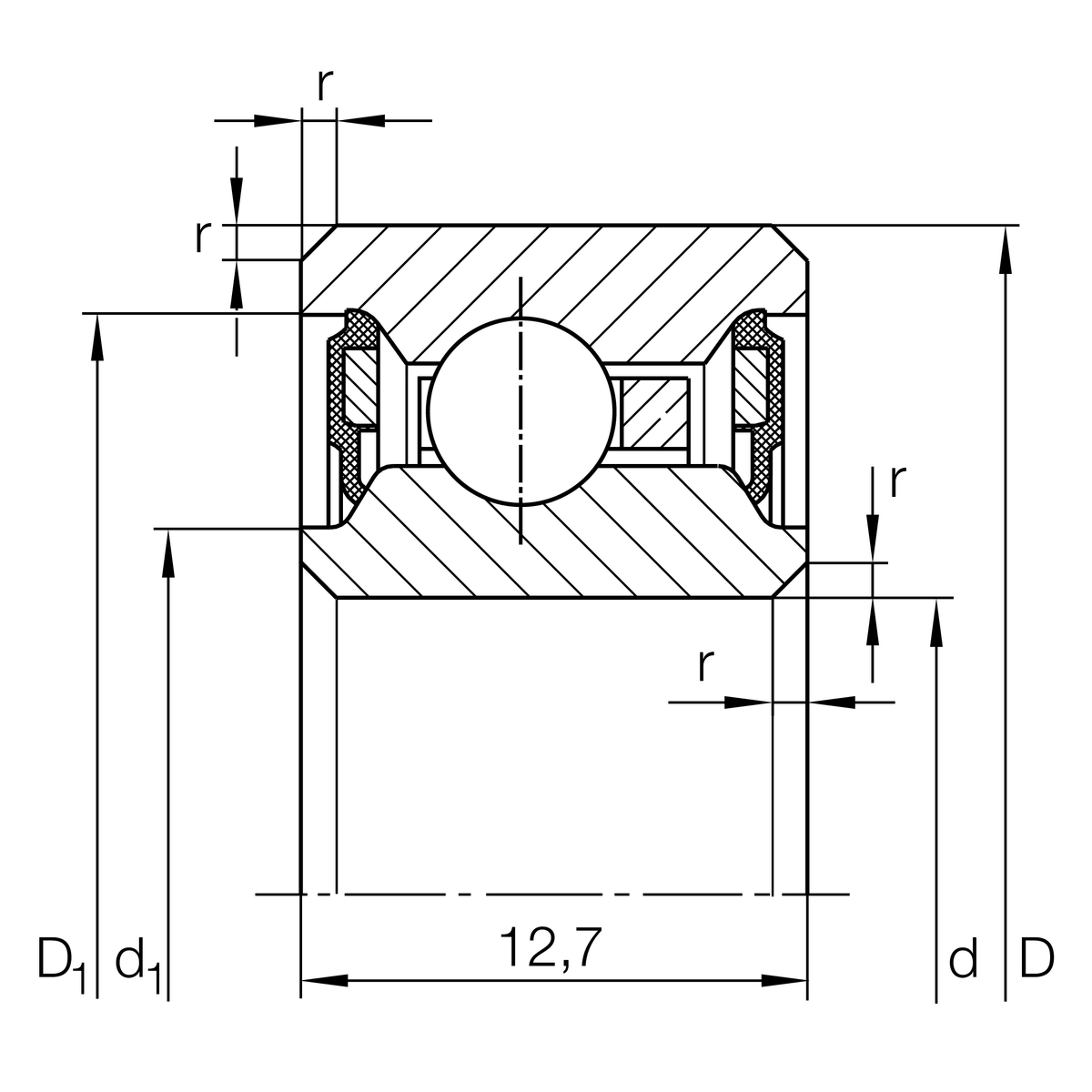

Mounting dimensions

r min

 0.38 mm Minimum chamfer dimension ,

d 1

 207 mm Caliber diameter inner ring ,

D 1

 216.8 mm Caliber diameter outer ring

Temperature range

T min

 -20 °C Operating temperature min.

T max

 120 °C Operating temperature max.
