Main Dimensions & Performance Data

d

 279.4 mm

d(Inch)

 279.4 Inch

D

 317.5 mm

B

 19.05 mm

Cr

 33500 N

Cor

 53000 N

Limiting speed

 1800 rpm

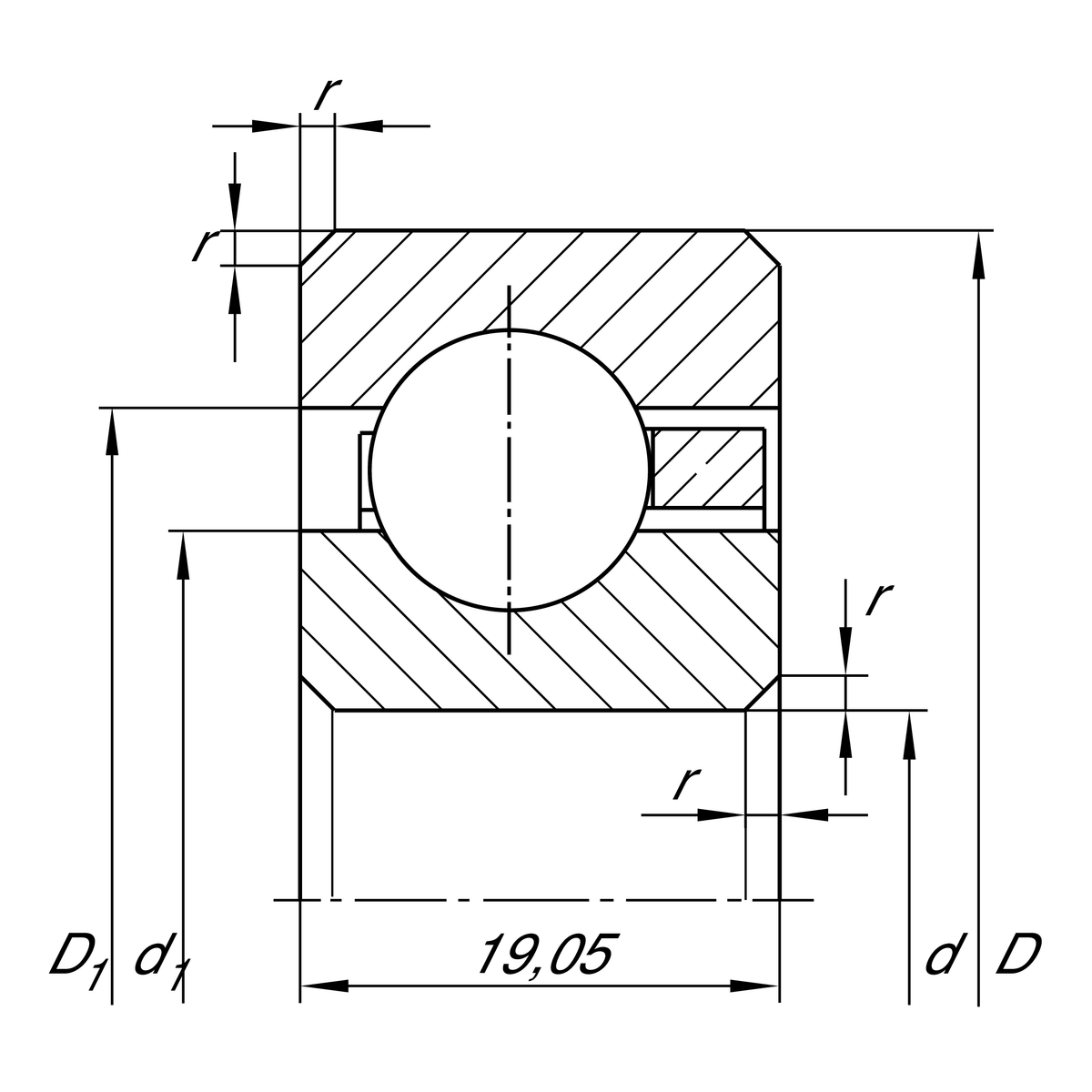

Mounting dimensions

r min

 2 mm Minimum chamfer dimension ,

d 1

 293.5 mm Shoulder diameter inner ring

D 1

 303.4 mm Shoulder diameter outer ring

Temperature range

T min

 -30 °C Operating temperature min.

T max

 120 °C Operating temperature max.
