Main Dimensions & Performance Data

d

 38.1 mm

D

 47.625 mm

B

 4.763 mm

Cr

 2050 N

Cor

 1860 N

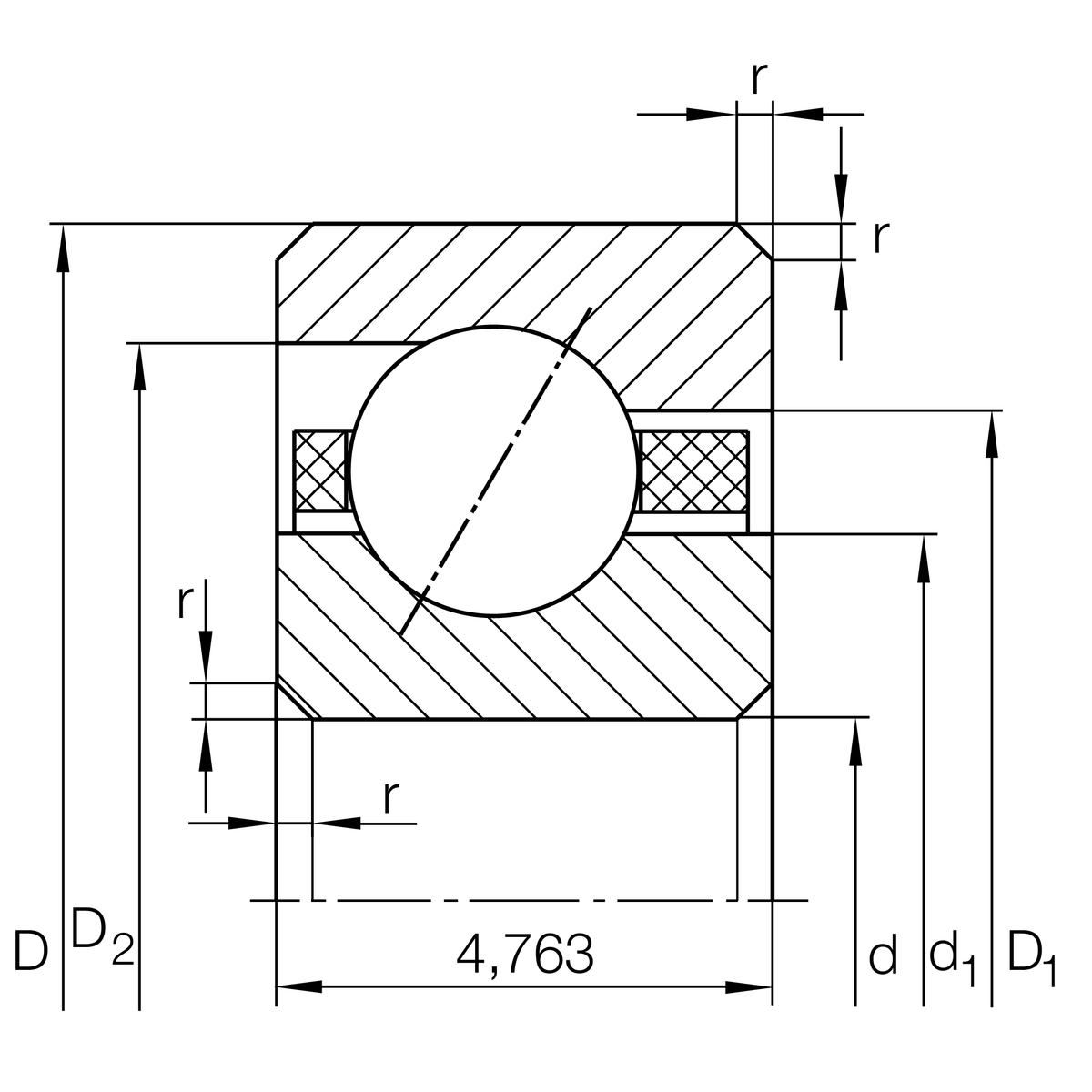

Mounting dimensions

r min

 0.38 mm Minimum chamfer dimension

d1

 41.7 mm Inner ring shoulder diameter

D1

 44.1 mm Outer ring shoulder diameter

D2

 45.1 mm Outer ring narrow plate diameter

α

 30 ° Contact angle

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 120 °C Maximum operating temperature
