Main Dimensions & Performance Data

d

 152.4 mm

D

 168.275 mm

B

 7.938 mm

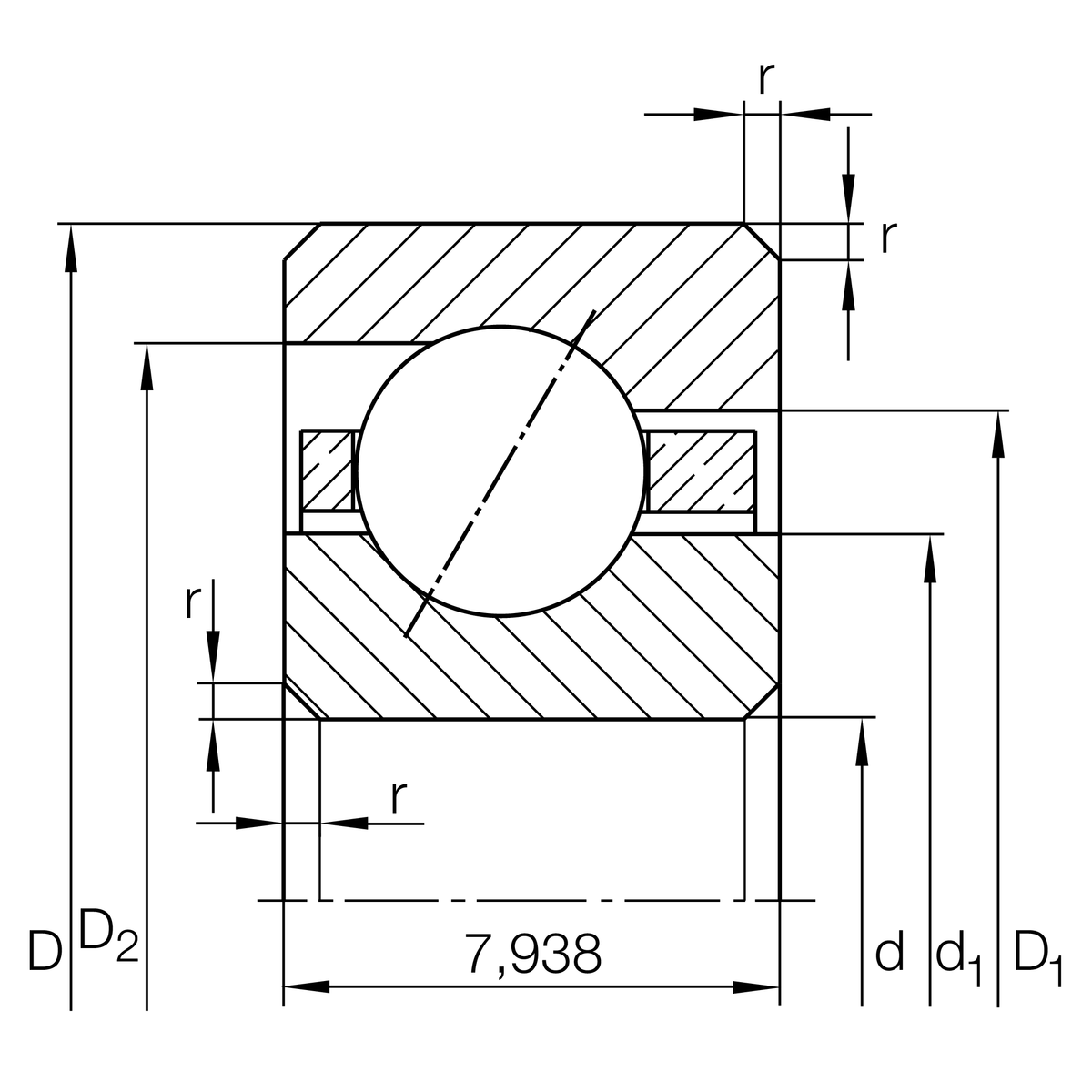

Mounting dimensions

r min

 1 mm Minimum chamfer dimension

d1

 158.3 mm Inner ring shoulder diameter

D1

 162.4 mm Outer ring shoulder diameter

D2

 164 mm Outer ring narrow plate diameter

α

 30 ° Contact angle

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 120 °C Maximum operating temperature
