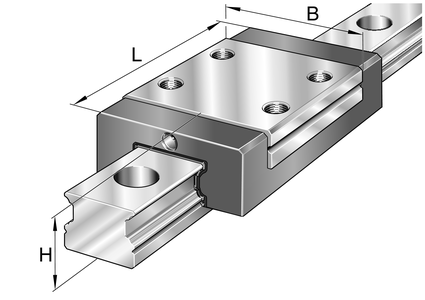

Main Dimensions & Performance Data

B

 32 mm

L

 44 mm

H

 16 mm

Cr

 4400 N

Cor

 8300 N

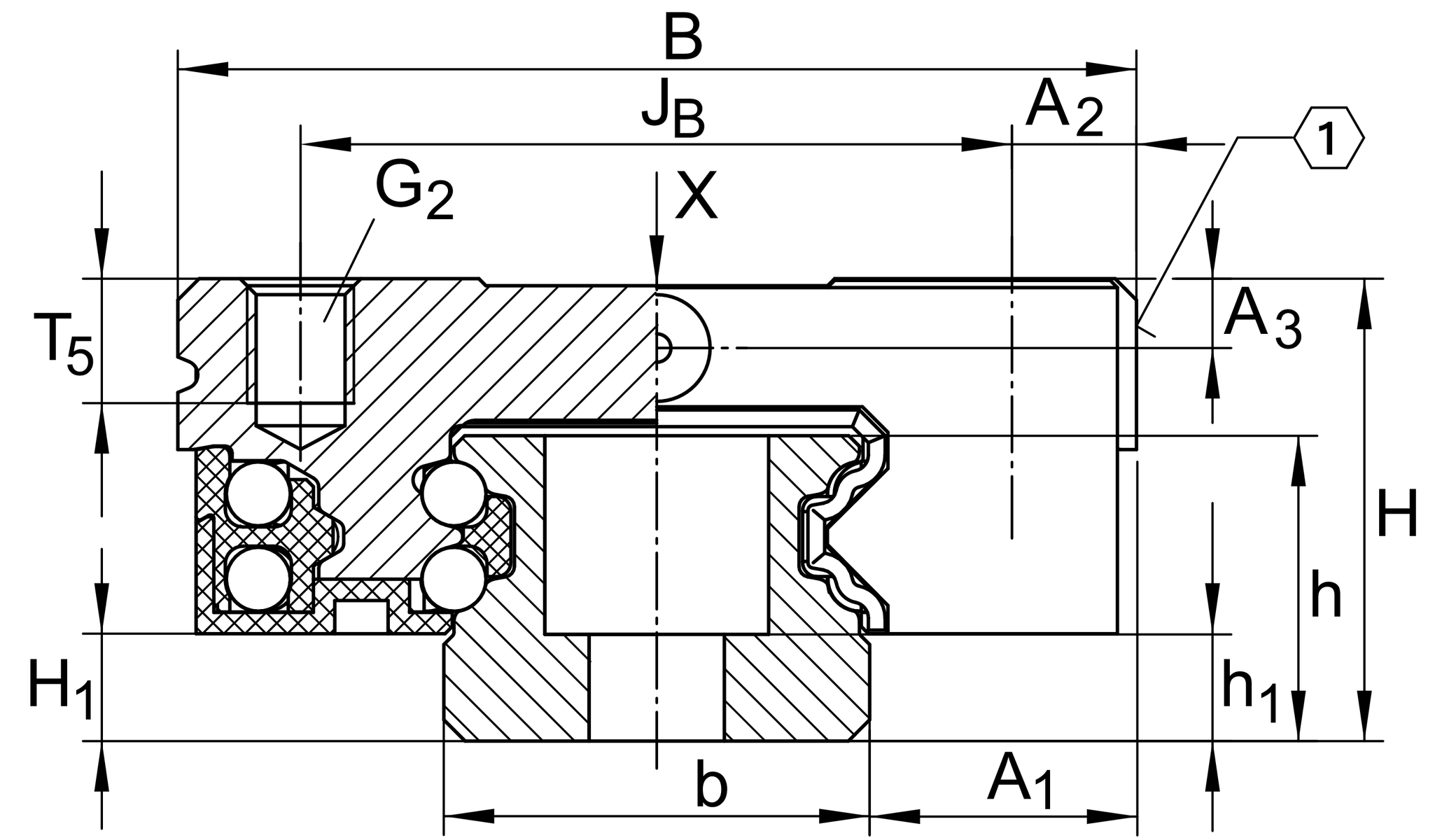

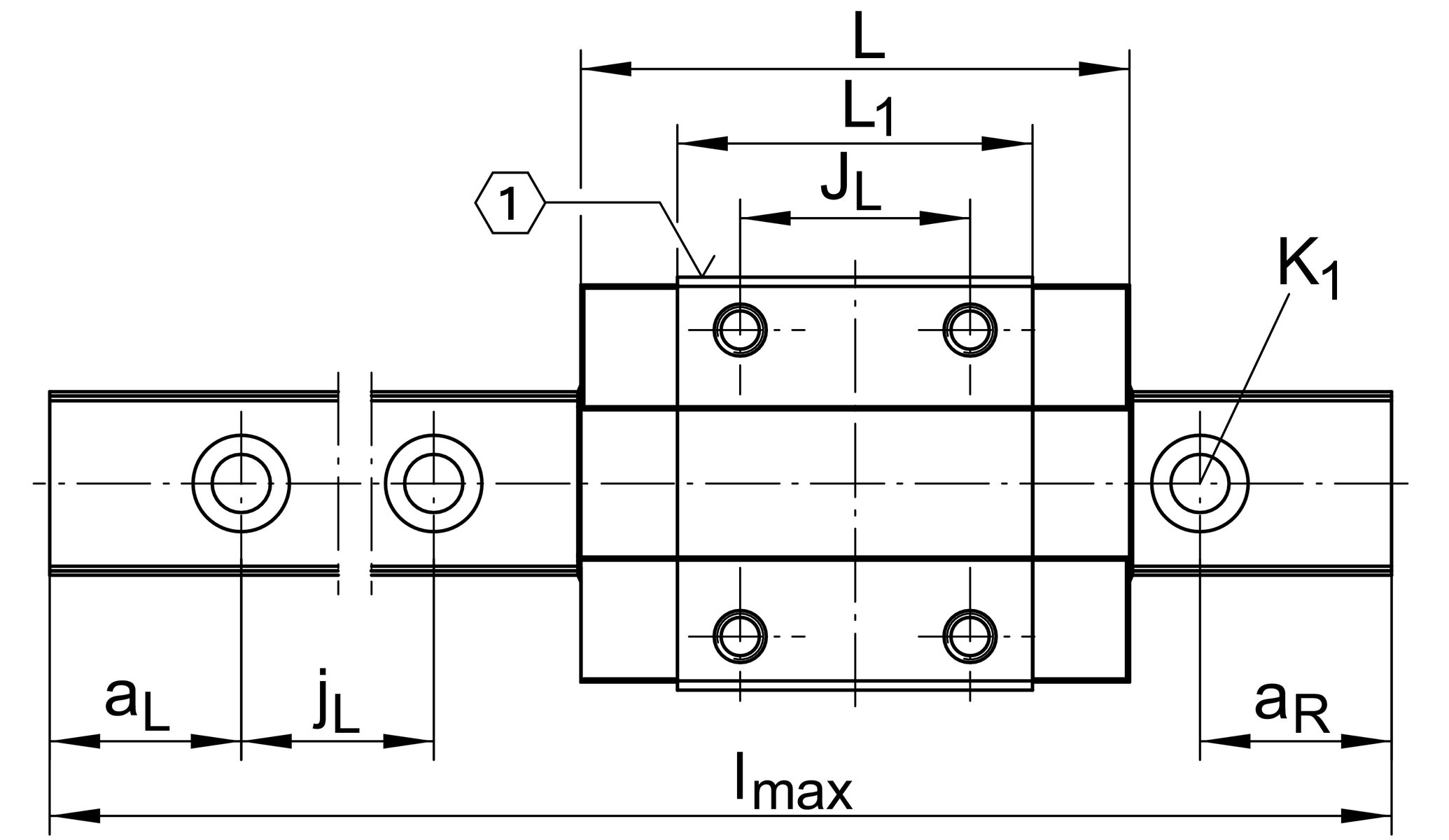

Mounting dimensions

G2

 M3 Fixing screws 1

G2MA

 2.2 Nm Maximum tightening torque

K1

 M3 Fixing screws 1

K1MA

 2.2 Nm Tightening torque
