Main Dimensions & Performance Data

B

 97 mm

Tol B

 -0,1

L Max

 3000 mm

H

 41 mm

Tol H

 -0,1

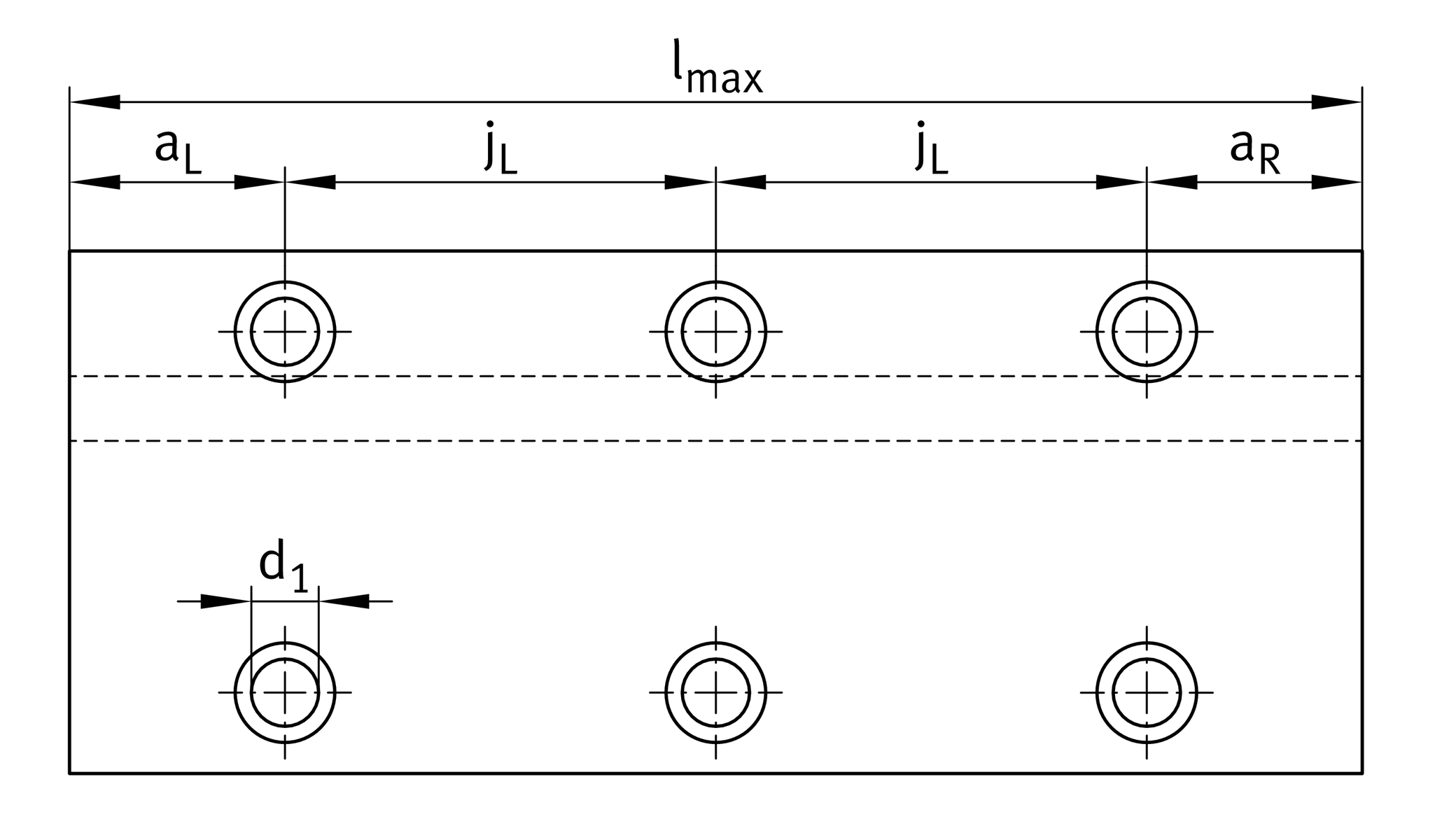

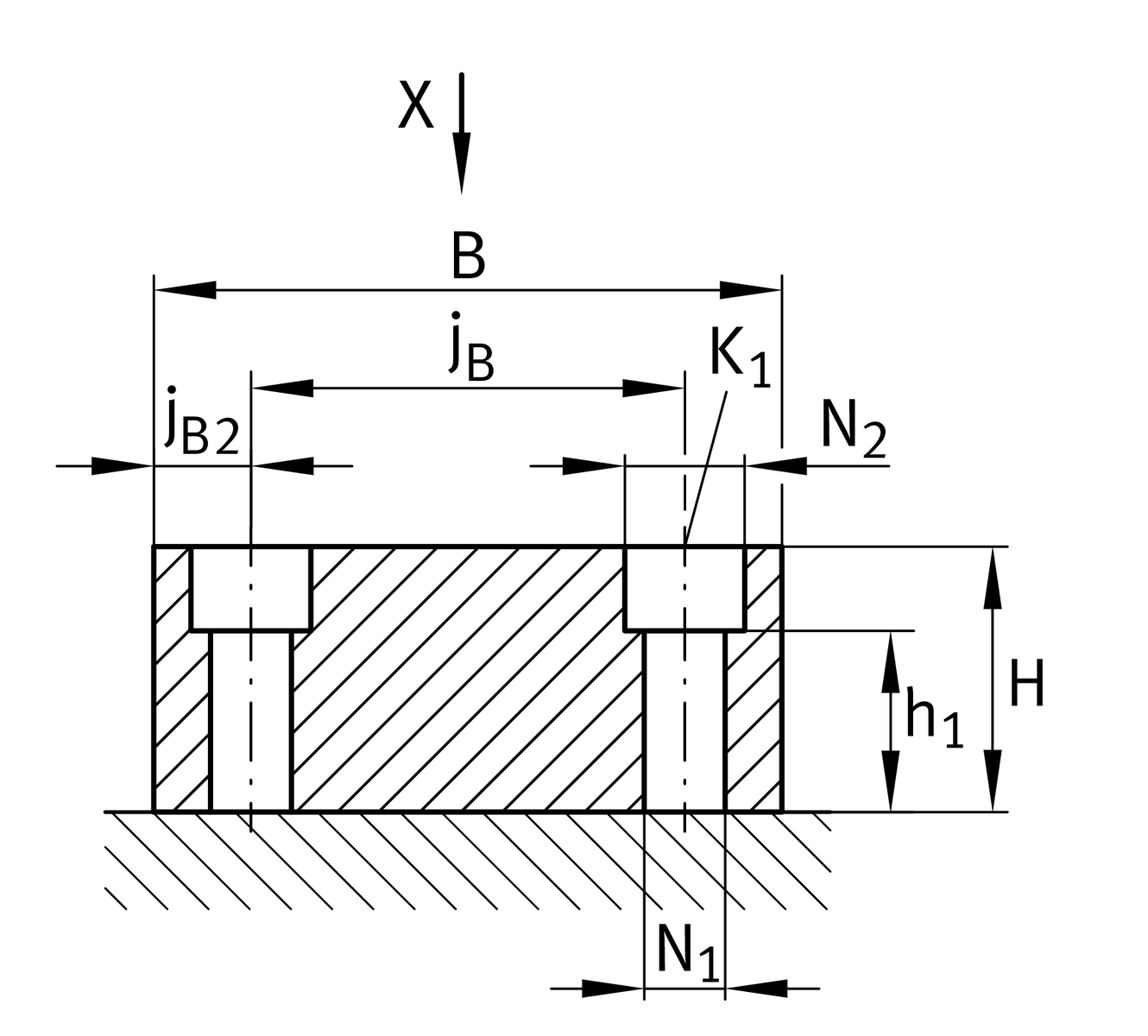

Mounting dimensions

jB

 67 mm

jB2

 15 mm

jL

 80 mm

aRmin

 15 mm 2

aRmax

 55 mm 2

aLmin

 15 mm 2

aLmax

 55 mm

27.5 mm

N2

 18.5 mm

K1

 M10 fixing srews (DIN ISO 4762-12.9)

K1MA

 83 Nm torques fixing screws³

d1

 12.5 mm bore diameter
