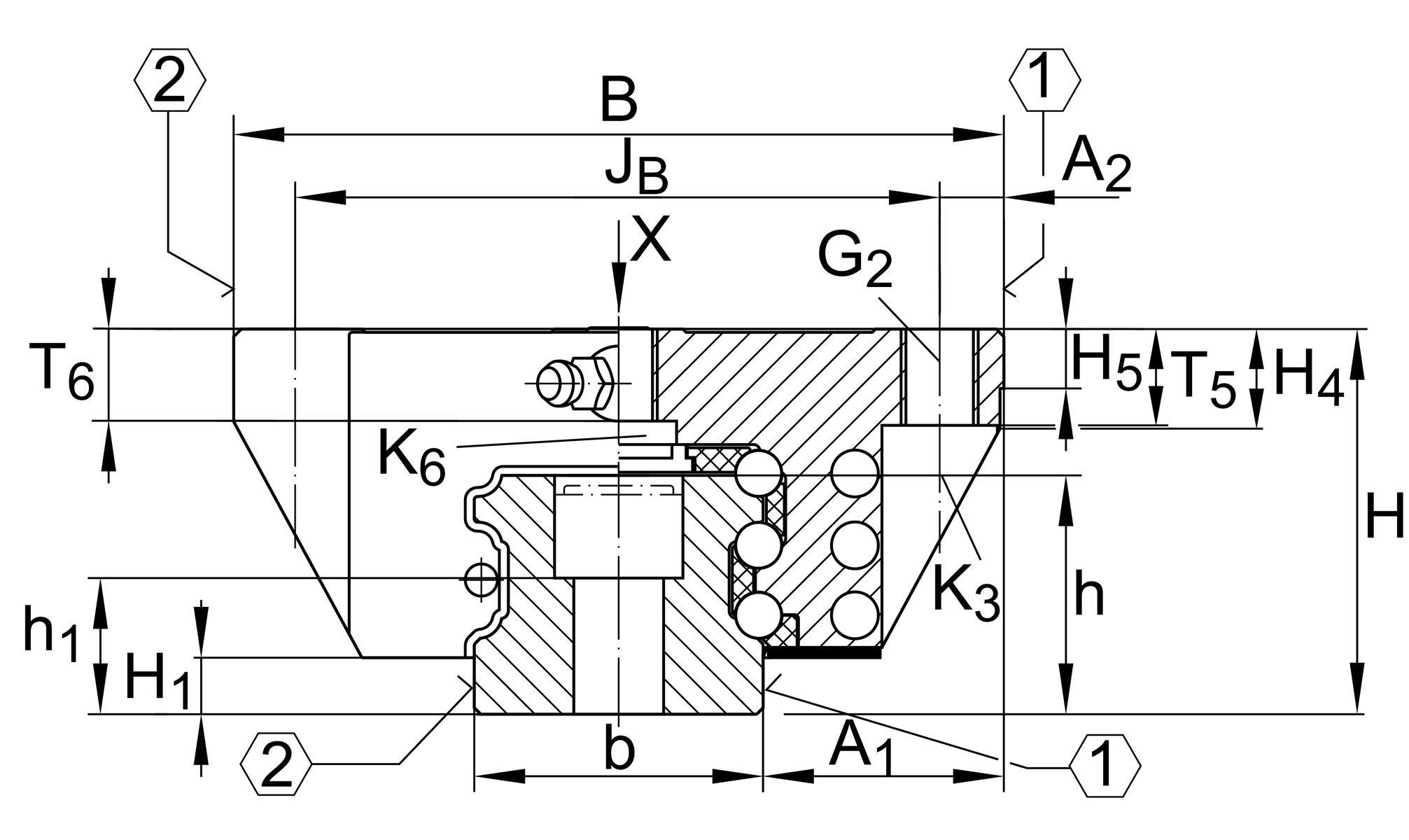

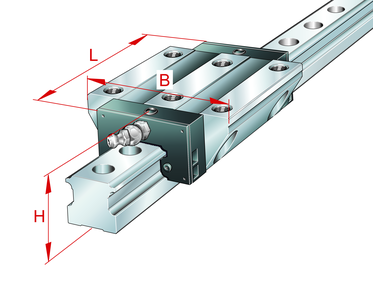

Main Dimensions & Performance Data

B

63 mm

L

71.4 mm

H

30 mm

Cr

22000 N

Cor

52000 N

Weight

0.43 g

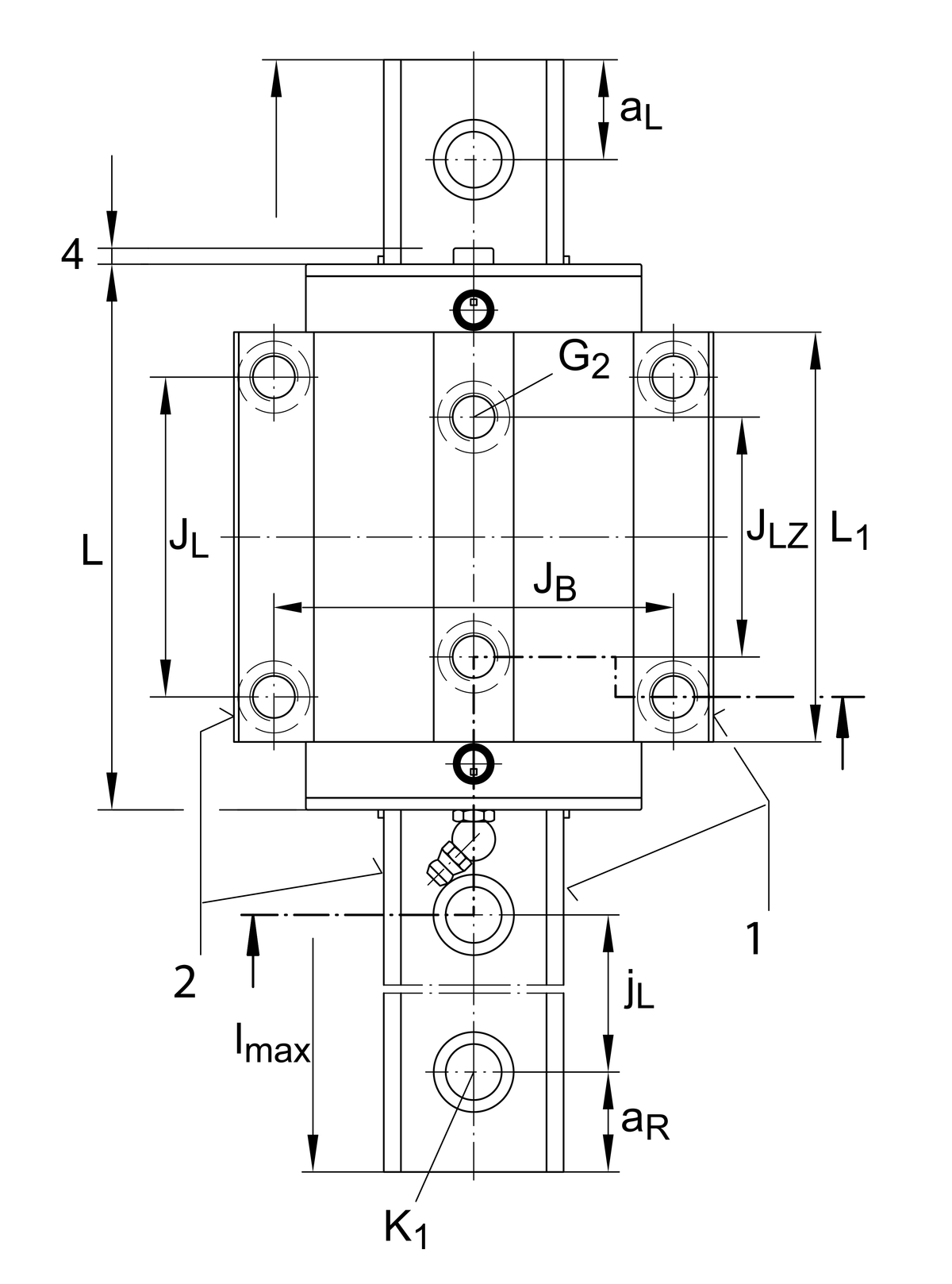

Mounting dimensions

A1

21.5 mm

JB

53 mm

b

20 mm width rail

A2

5 mm

L1

52.4 mm

JL

40 mm

JLZ

35 mm

H1

4.6 mm

H4

10.6 mm

H5

5 mm

T5

10 mm

T6

7.2 mm

G2

M6 fixing screws below (DIN ISO 4762-12.9)

G2MA

10 Nm maximum tightening torque

K3

M5 fixing screws below (DIN ISO 4762-12.9)

K3MA

10 Nm maximum tightening torque

K6

M5 fixing screws below (DIN ISO 4762-12.9)

D2

5.5 mm

N2

3 mm max. diameter of lubrication hole in adjacent construction

JL5

9.95 mm position lubrication connector

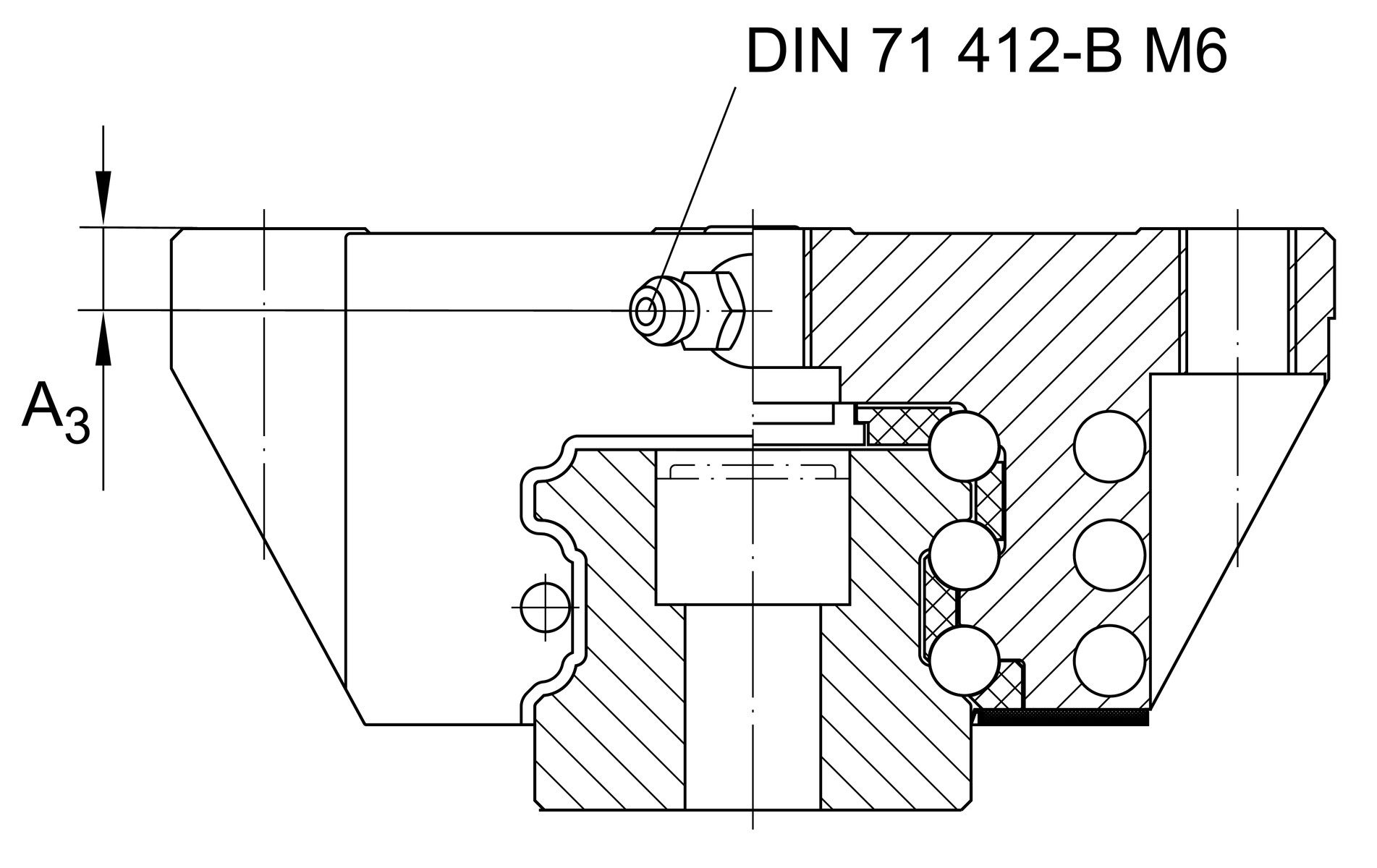

A3

5.8 mm position lubrication connector

tA3

7 mm maximum permissible screw depth for lubrication connectors

M0X

530 Nm Moment

M0Y

350 Nm Moment

M0Z

305 Nm Moment
