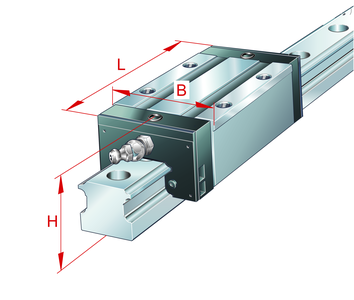

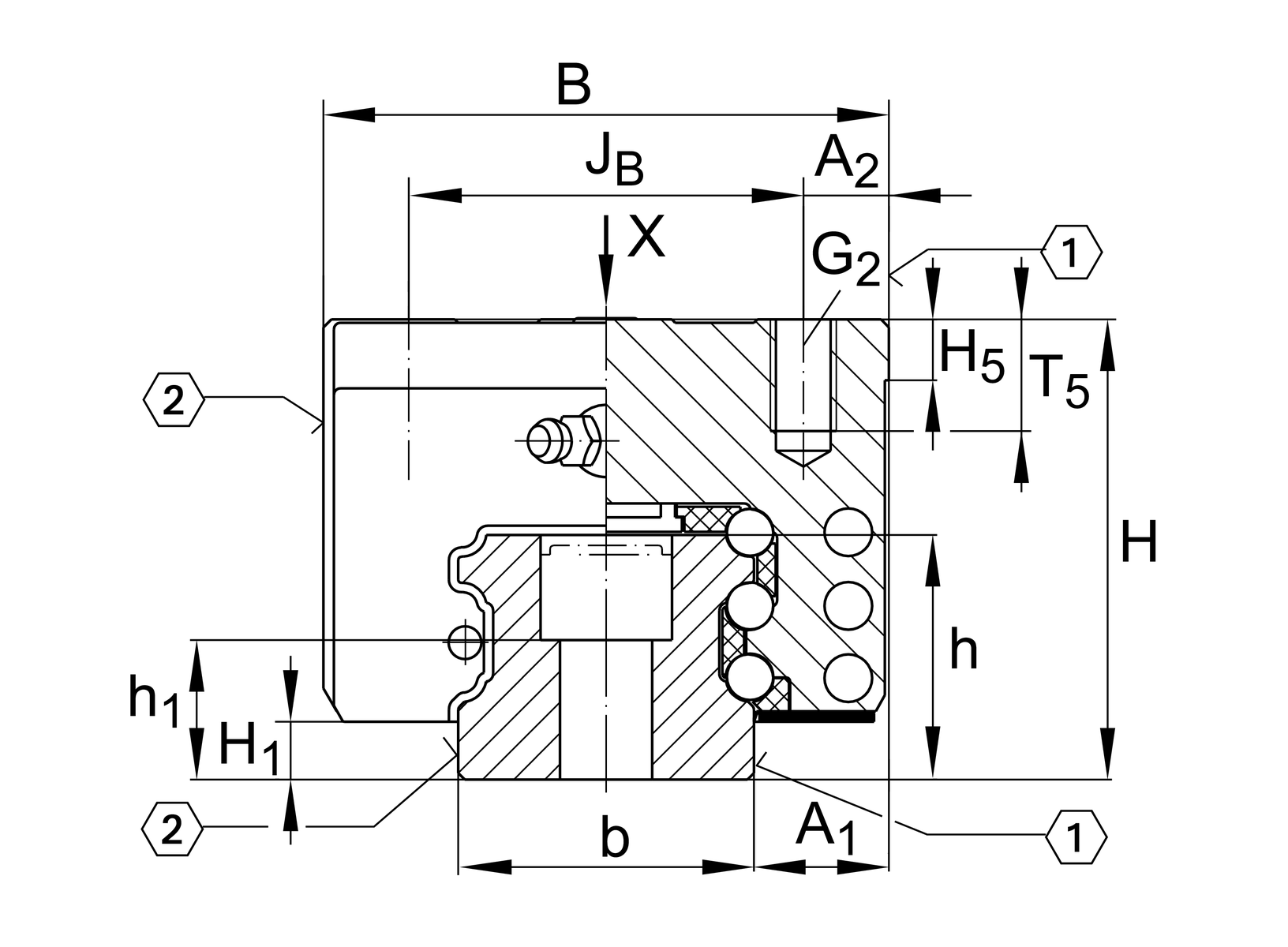

A1
|
16 mm
|
|
JB
|
40 mm
|
|
b
|
28 mm
|
width rail
|
A2
|
10 mm
|
|

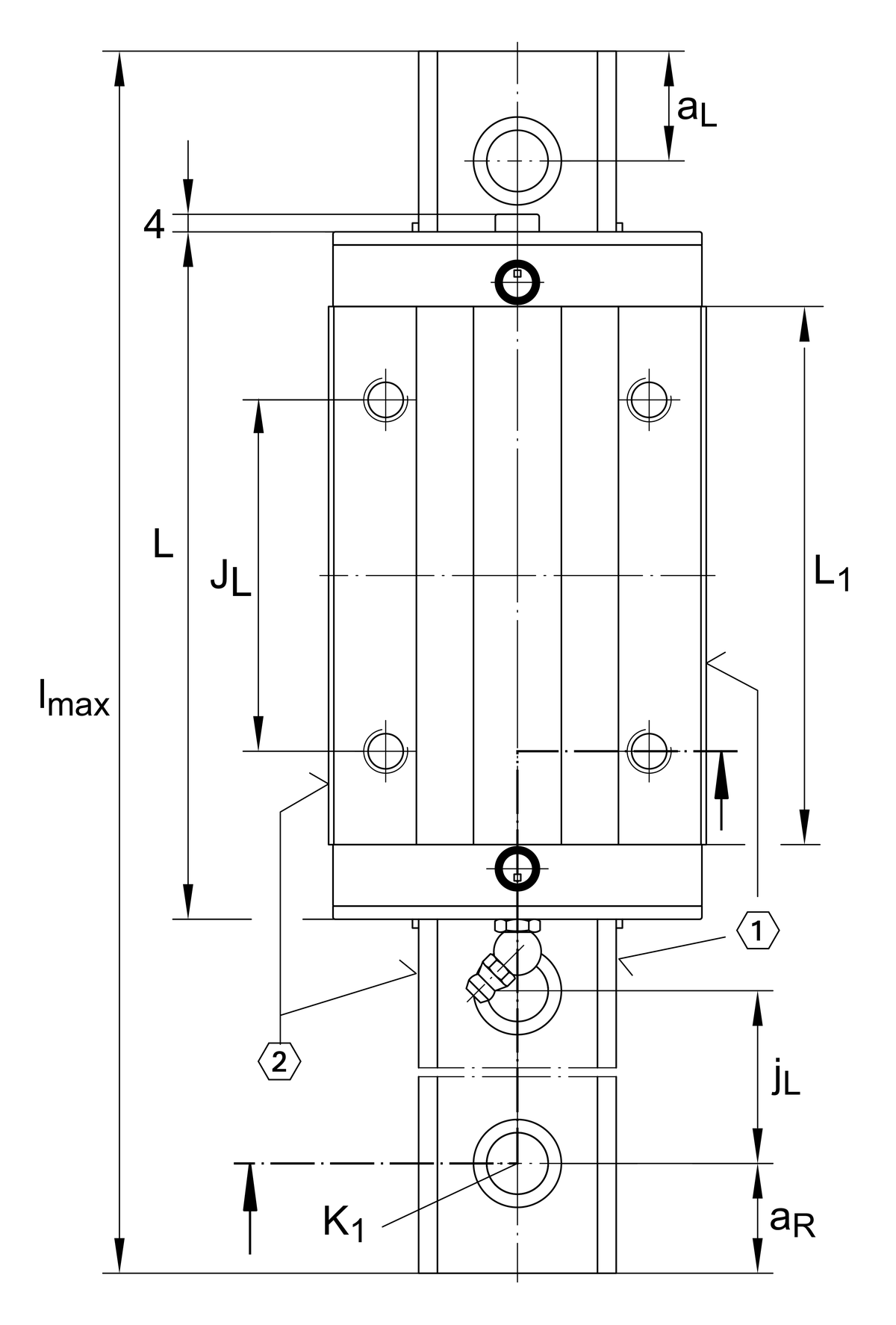

L1
|
67.6 mm
|
|
JL
|
40 mm
|
|
H1
|
5.4 mm
|
|
H5
|
6 mm
|
|
T5
|
11 mm
|
|
G2
|
M8
|
fixing screws below (DIN ISO 4762-12.9)
|
G2MA
|
41 Nm
|
maximum tightening torque
|
N2
|
4.5 mm
|
max. diameter of lubrication hole in adjacent construction
|
JL5
|
18.8 mm
|
position lubrication connector
|

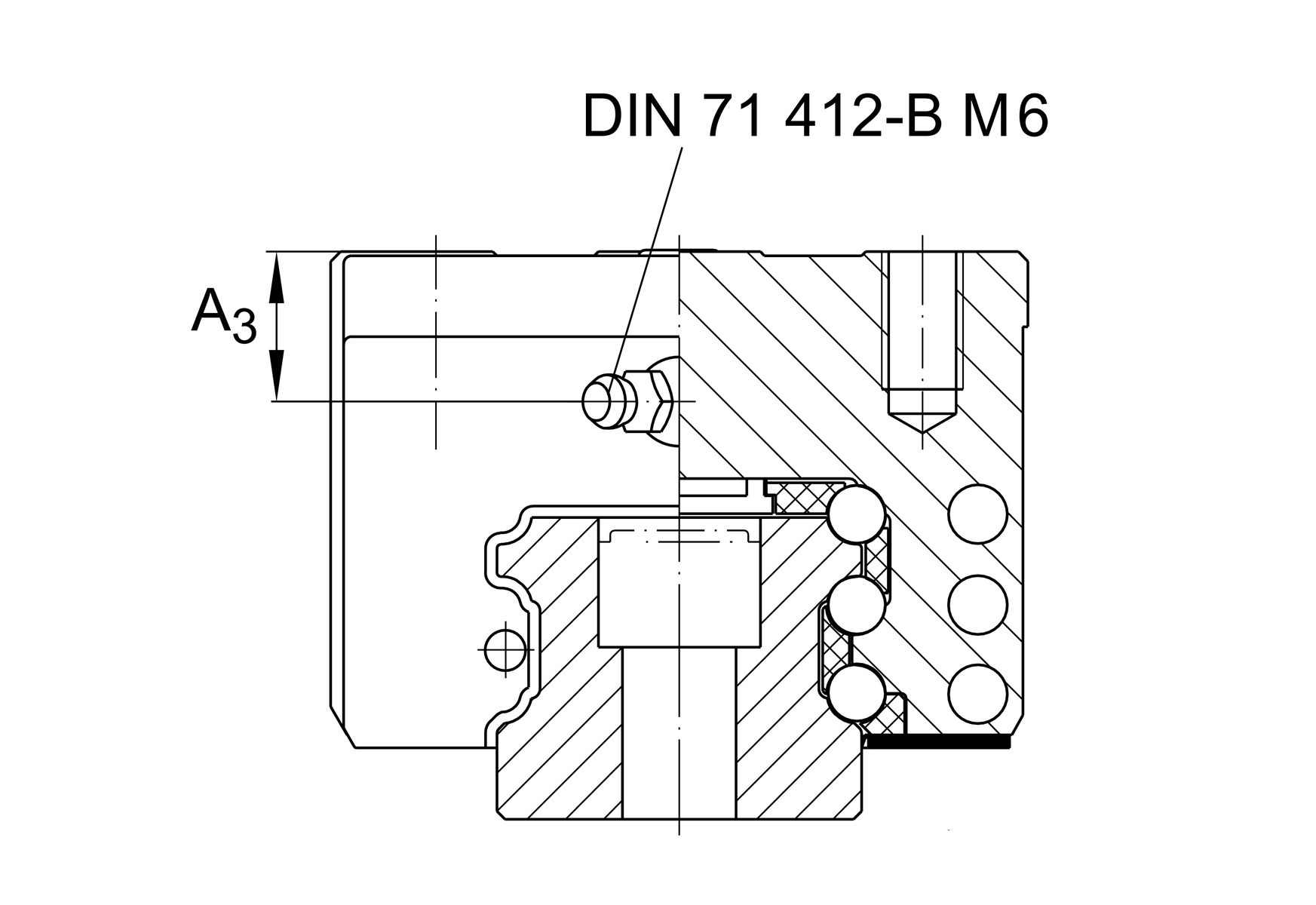

A3
|
9.5 mm
|
position lubrication connector
|
tA3
|
7 mm
|
maximum permissible screw depth for lubrication connectors
|
O
|
4,5x1,5 mm
|
O-Ring DIN 3771
|
M0X
|
1,350 Nm
|
Moment
|
M0Y
|
800 Nm
|
Moment
|
M0Z
|
710 Nm
|
Moment
|
