VMKB_065
|
KWVE
|
Material name
|
A1
|
9.5 mm
|
|
JB
|
26 mm
|
|
b
|
15 mm
|
width rail
|
A2
|
4 mm
|
|
L1
|
39.8 mm
|
|
LS
|
1.3 mm
|
|
JL
|
26 mm
|
|
H1
|
4.3 mm
|
|
H5
|
4.75 mm
|
|
T5
|
6 mm
|
|
G2
|
M4
|
fixing screws below (DIN ISO 4762-12.9)
|
G2MA
|
5 Nm
|
maximum tightening torque
|
A3
|
8.3 mm
|
position lubrication connector
|
G3
|
M3
|

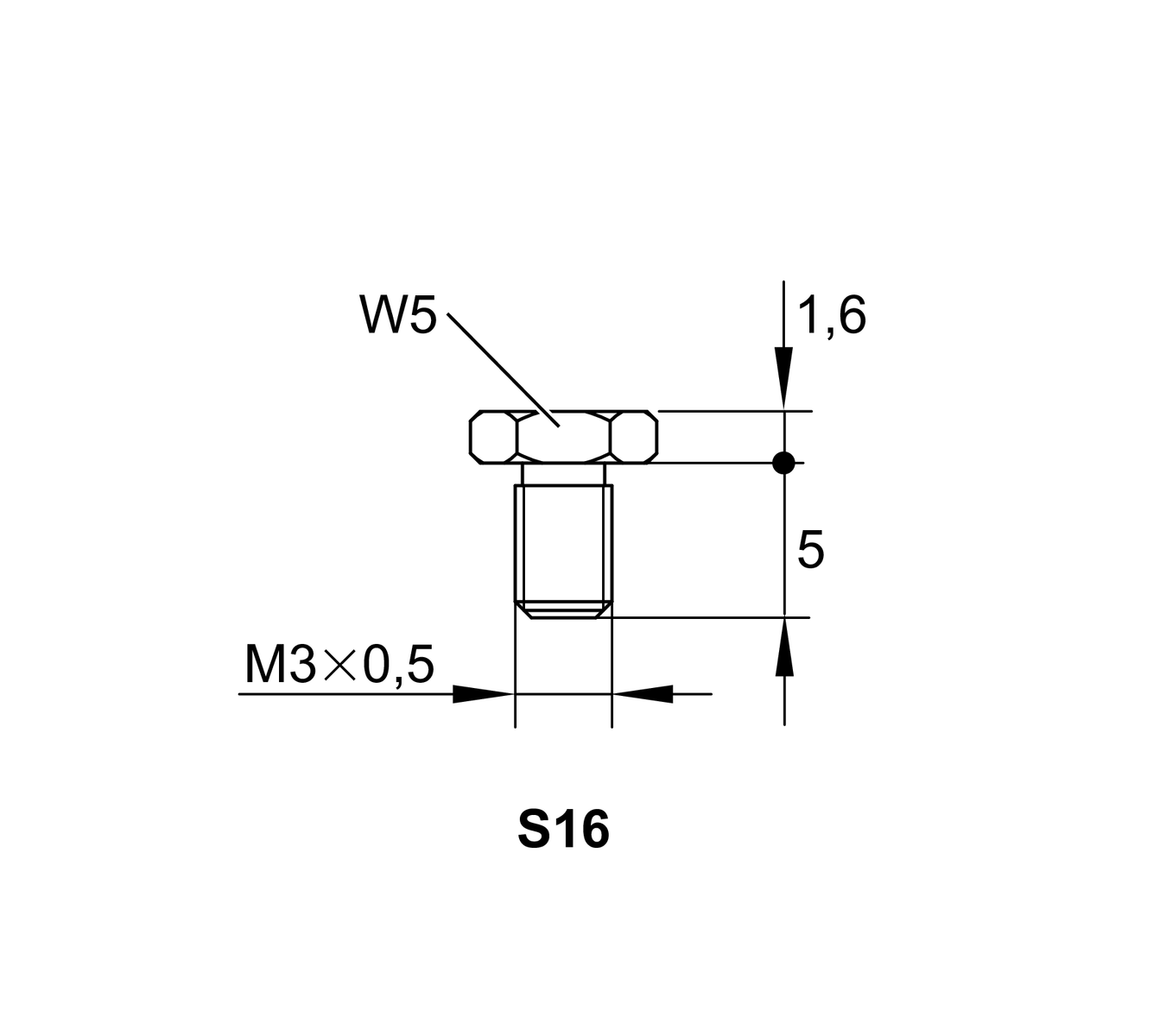

lubrication connector
|
tG3
|
5.5 mm
|
maximum permissible screw depth for lubrication connectors
|
A4
|
7.2 mm
|
position lubrication connector
|
G4
|
M3 mm
|
lubrication connector
|
tG4
|
5.5 mm
|
maximum permissible screw depth for lubrication connectors
|
JL6
|
11.1 mm
|
position lubrication connector
|
