Main Dimensions & Performance Data

B

90 mm

L

99 mm

H

42 mm

Cr

27500 N

Cor

55000 N

Weight

1.2 g

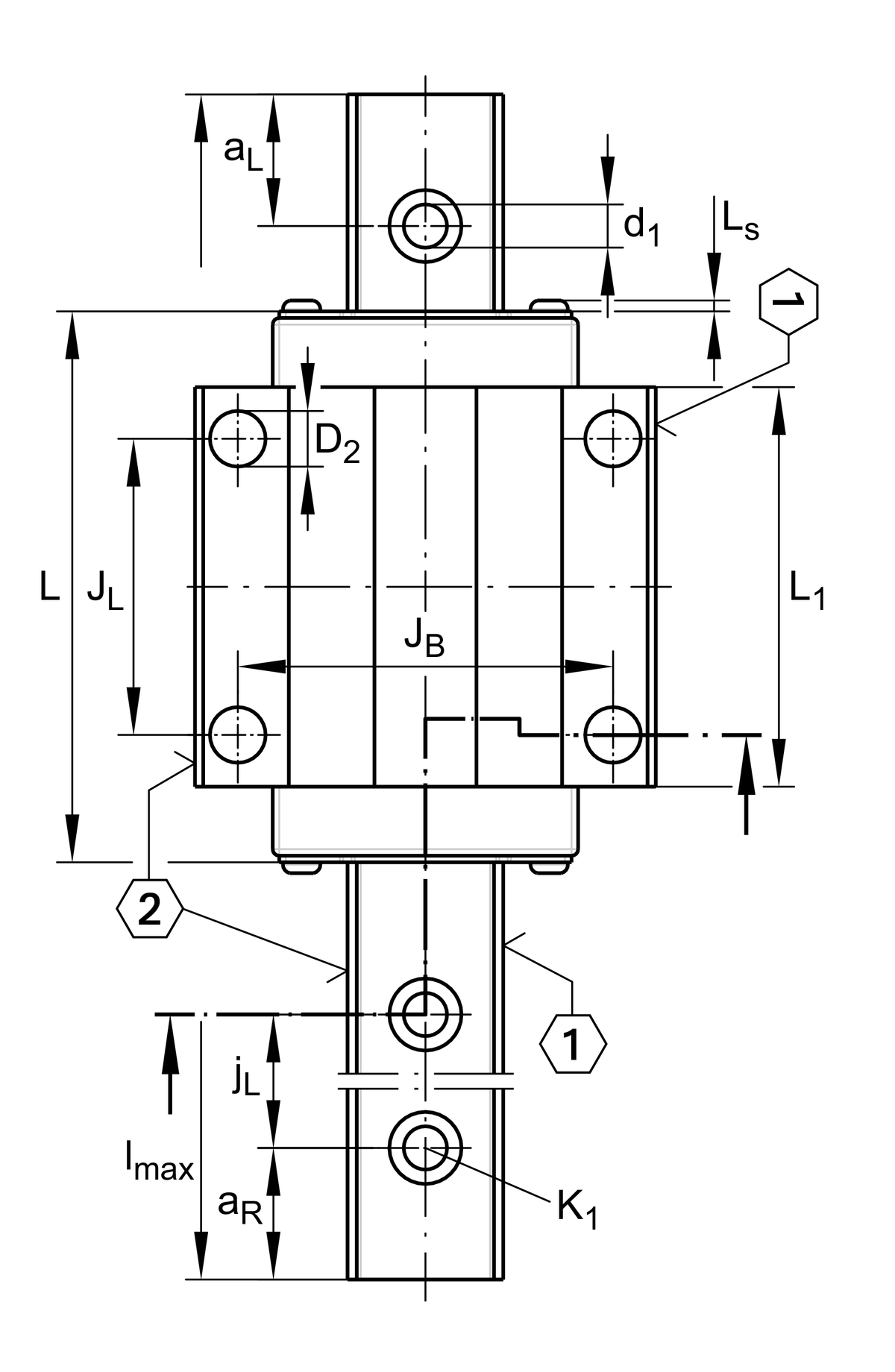

Mounting dimensions

VMKB_065

KWVE Material name

A1

31 mm

JB

72 mm

b

28 mm width rail

A2

9 mm

L1

72 mm

LS

1.65 mm

JL

40 mm

H1

5.9 mm

H4

13.8 mm

H5

6.25 mm

T5

12 mm

K3

M8 fixing screws below (DIN ISO 4762-12.9)

K3MA

41 Nm maximum tightening torque

D2

8.6 mm

A3

11.5 mm position lubrication connector

G3

M6 lubrication connector

tG3

7 mm maximum permissible screw depth for lubrication connectors

A4

7 mm position lubrication connector

G4

M6 mm lubrication connector

tG4

7 mm maximum permissible screw depth for lubrication connectors

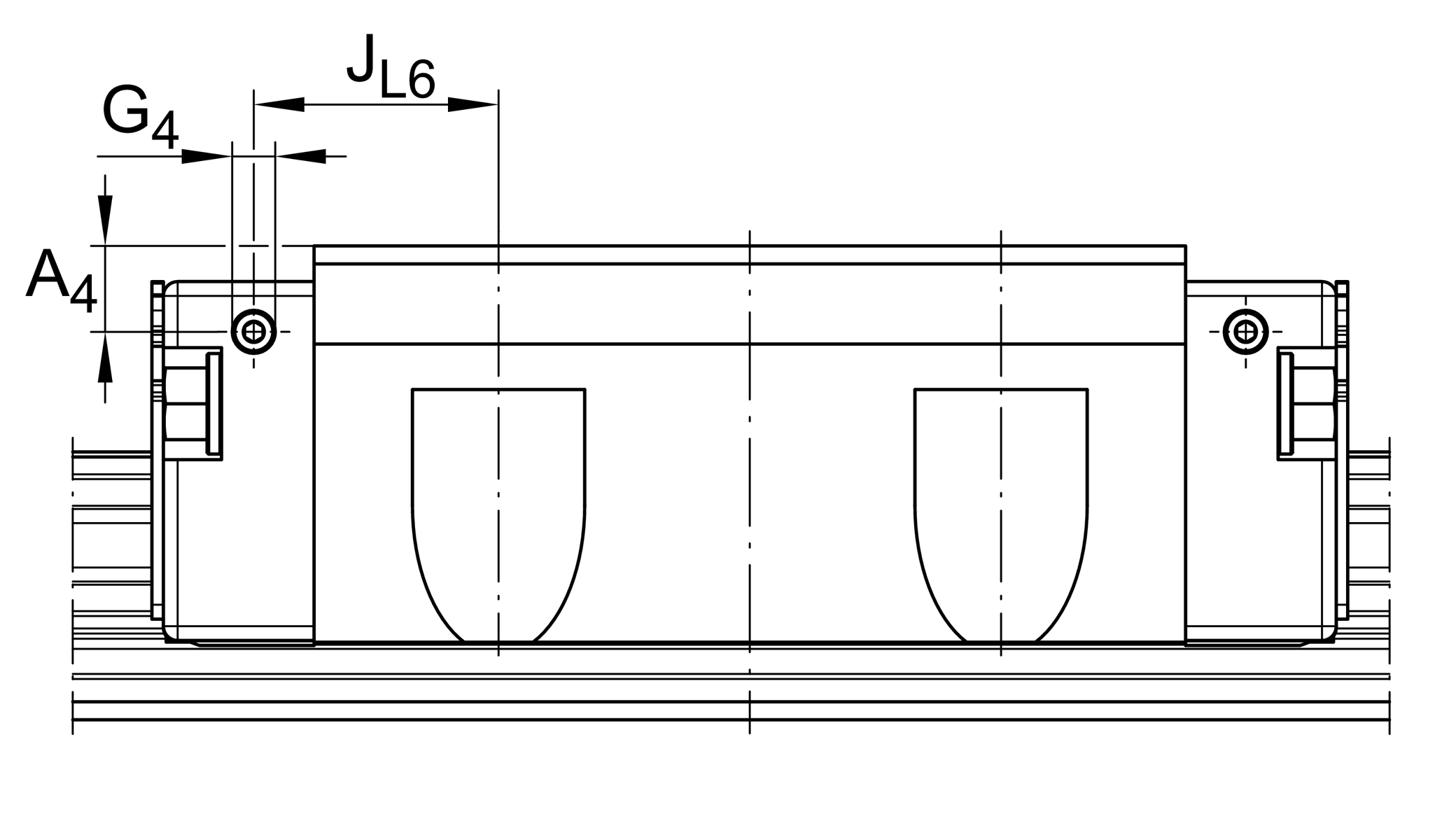

JL6

21.1 mm position lubrication connector
