VMKB_065
|
KWVE
|
Material name
|

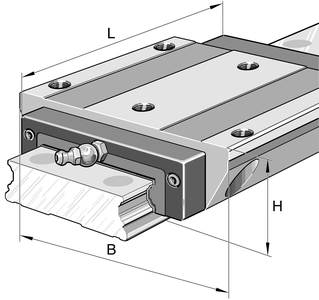

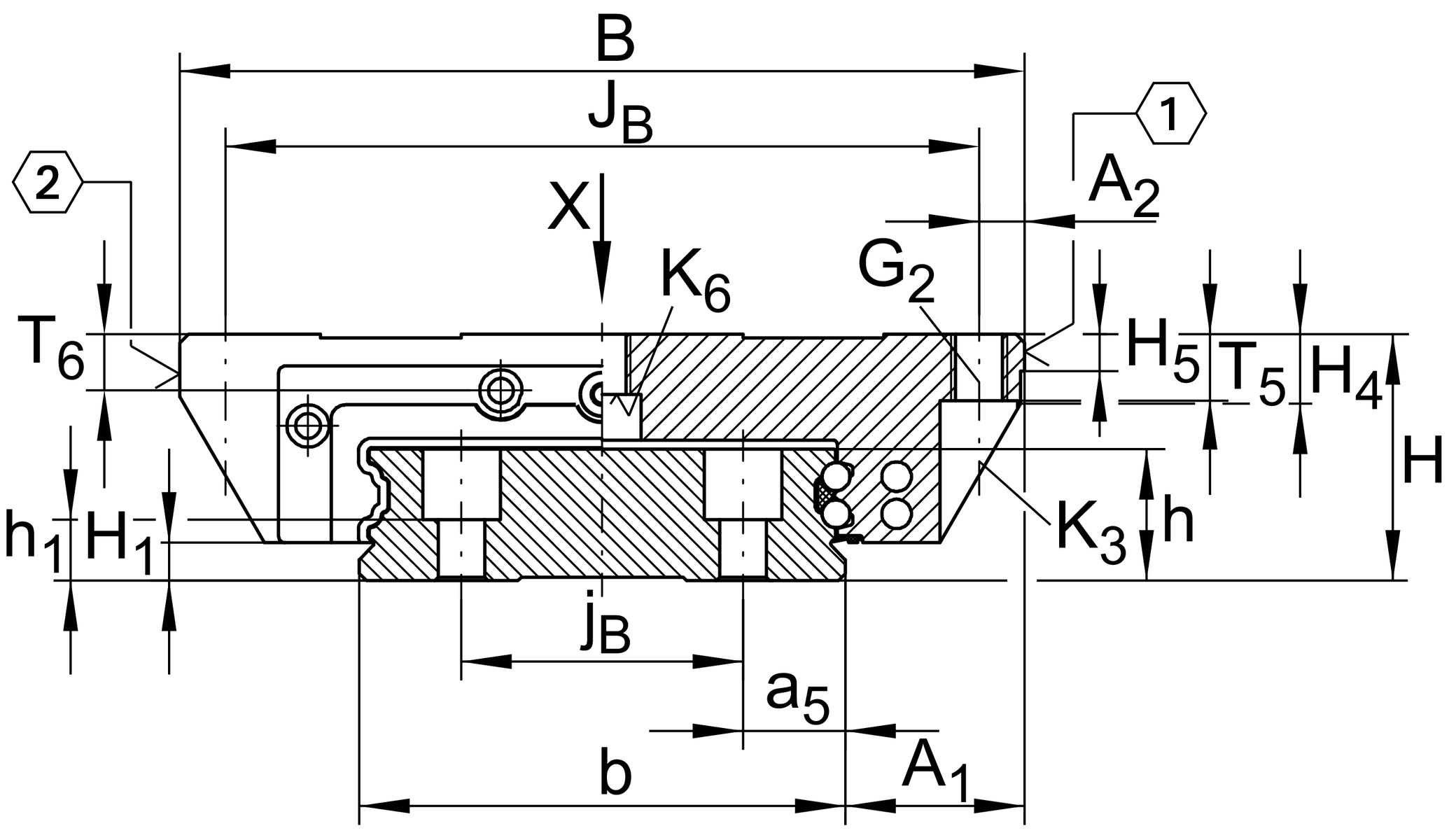

A1
|
36 mm
|
|
JB
|
144 mm
|
|
b
|
90 mm
|
width rail
|
A2
|
9 mm
|
|

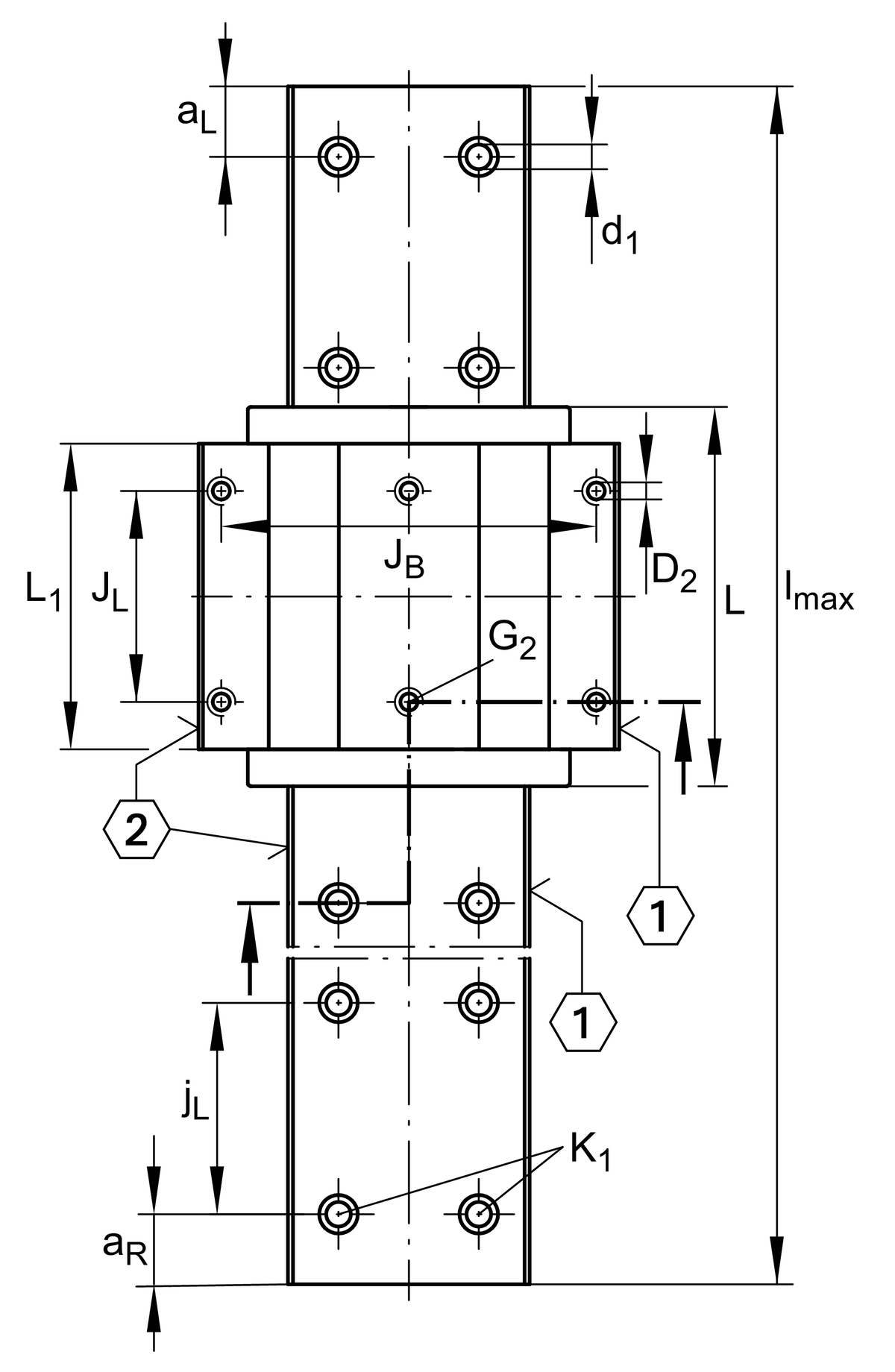

L1
|
109.8 mm
|
|
JL
|
80 mm
|
|
H1
|
6.8 mm
|
|
H4
|
16.3 mm
|
|
H5
|
6.5 mm
|
|
T5
|
13 mm
|
|
T6
|
13 mm
|
|
G2
|
M10
|
fixing screws below (DIN ISO 4762-12.9)
|
G2MA
|
41 Nm
|
maximum tightening torque
|
K3
|
M8
|
fixing screws below (DIN ISO 4762-12.9)
|
K3MA
|
41 Nm
|
maximum tightening torque
|
K6
|
M8
|
fixing screws below (DIN ISO4762-12.9)
|
K6MA
|
41 Nm
|
maximum tightening torque
|
D2
|
8.6 mm
|
|

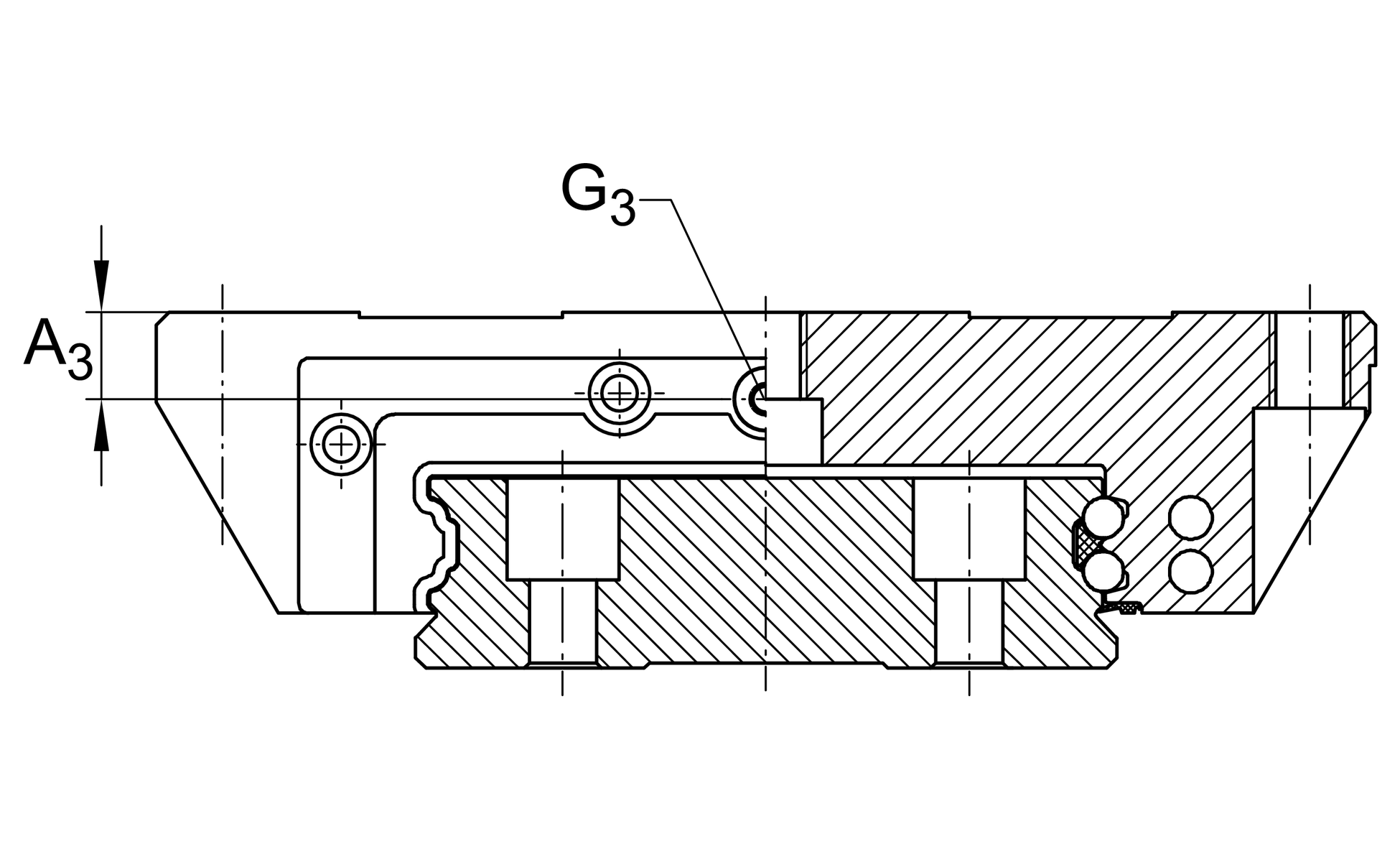

A3
|
14.3 mm
|
position lubrication connector
|
G3
|
M6
|
lubrication connector
|
tG3
|
6 mm
|
maximum permissible screw depth for lubrication connectors
|
