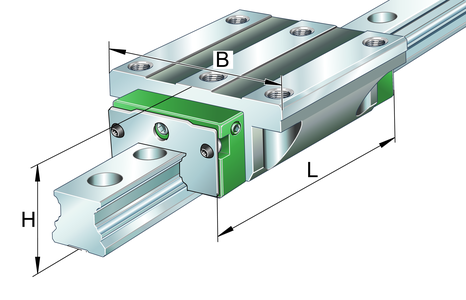

VMKB_065
|
KWVE
|
Material name
|
A1
|
37.5 mm
|
|
JB
|
100 mm
|
|
b
|
45 mm
|
width rail
|
A2
|
10 mm
|
|
L1
|
102.5 mm
|
|
LS
|
2.2 mm
|
|
JL
|
80 mm
|
|
JLZ
|
60 mm
|
|
H1
|
9.7 mm
|
|
H4
|
19.9 mm
|
|
H5
|
9.25 mm
|
|
T5
|
15 mm
|
|
T6
|
15 mm
|
|
G2
|
M12
|
fixing screws below (DIN ISO 4762-12.9)
|
G2MA
|
83 Nm
|
maximum tightening torque
|
K3
|
M10
|
fixing screws below (DIN ISO 4762-12.9)
|
K3MA
|
83 Nm
|
maximum tightening torque
|
K6
|
M10
|
fixing screws below (DIN ISO4762-12.9)
|
K6MA
|
83 Nm
|
maximum tightening torque
|
D2
|
10.6 mm
|
|
A3
|
16.5 mm
|
position lubrication connector
|
G3
|
M6
|
lubrication connector
|
tG3
|
7 mm
|
maximum permissible screw depth for lubrication connectors
|
A4
|
16.5 mm
|
position lubrication connector
|
G4
|
M6 mm
|
lubrication connector
|
tG4
|
7 mm
|
maximum permissible screw depth for lubrication connectors
|
JL6
|
19.25 mm
|
position lubrication connector
|
