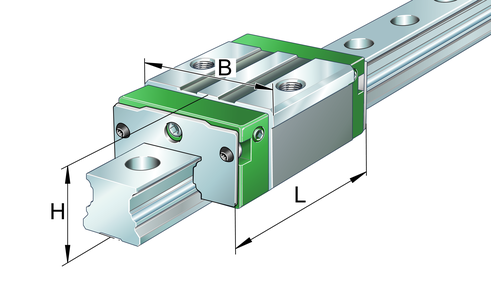

VMKB_065
|
KWVE
|
Material name
|

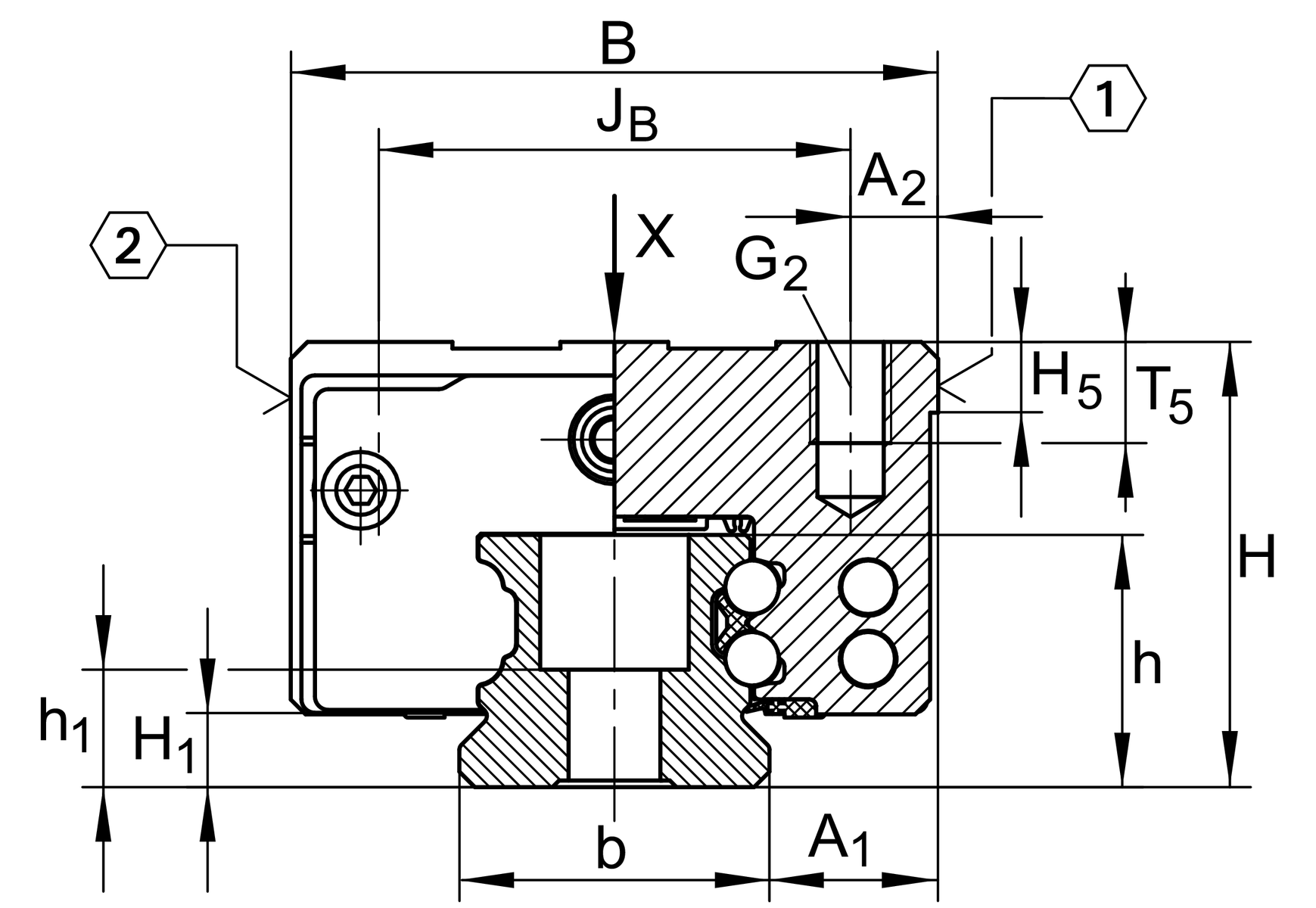

A1
|
20.5 mm
|
|
JB
|
60 mm
|
|
b
|
45 mm
|
width rail
|
A2
|
13 mm
|
|

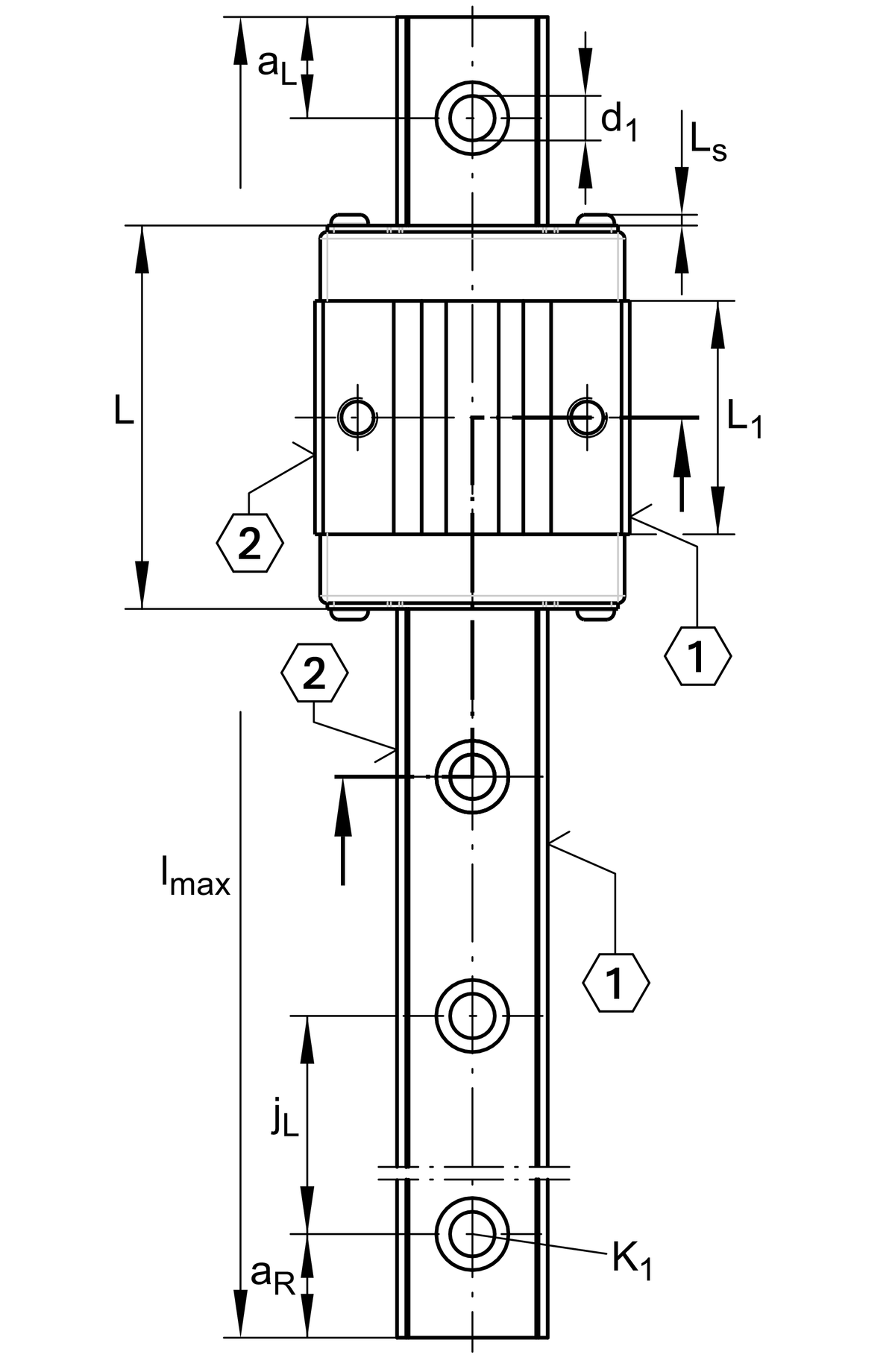

L1
|
59.7 mm
|
|
LS
|
2.2 mm
|
|
H1
|
9.7 mm
|
|
H5
|
9.25 mm
|
|
T5
|
17 mm
|
|
G2
|
M10
|
fixing screws below (DIN ISO 4762-12.9)
|
G2MA
|
83 Nm
|
maximum tightening torque
|
A3
|
16.5 mm
|
position lubrication connector
|
G3
|
M6
|
lubrication connector
|
tG3
|
7 mm
|
maximum permissible screw depth for lubrication connectors
|

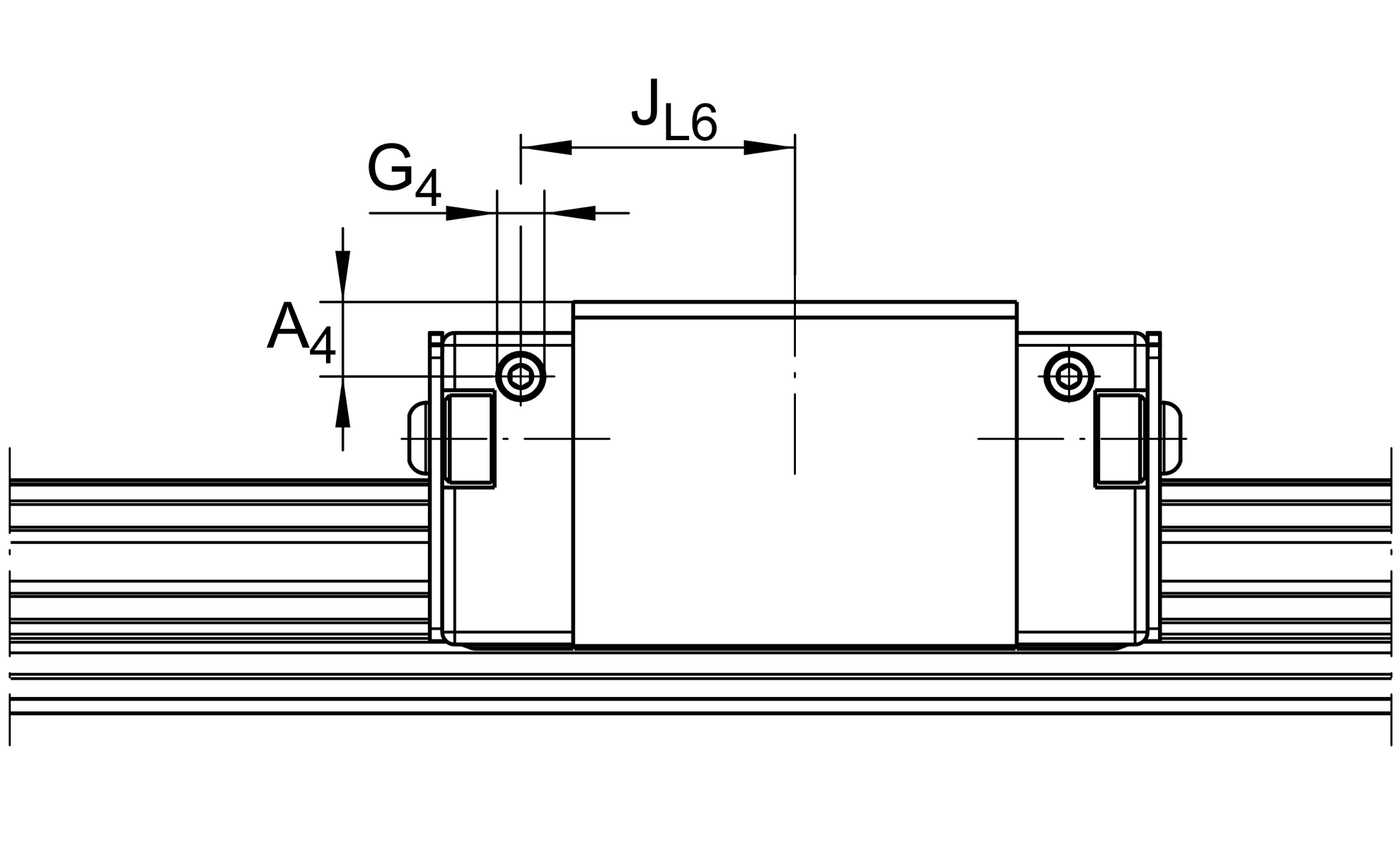

A4
|
16.5 mm
|
position lubrication connector
|
G4
|
M6 mm
|
lubrication connector
|
tG4
|
7 mm
|
maximum permissible screw depth for lubrication connectors
|
JL6
|
37.9 mm
|
position lubrication connector
|
