VMKB_065
|
KWVE
|
Material name
|
A1
|
23.5 mm
|
|
JB
|
75 mm
|
|
b
|
53 mm
|
width rail
|
A2
|
12.5 mm
|
|

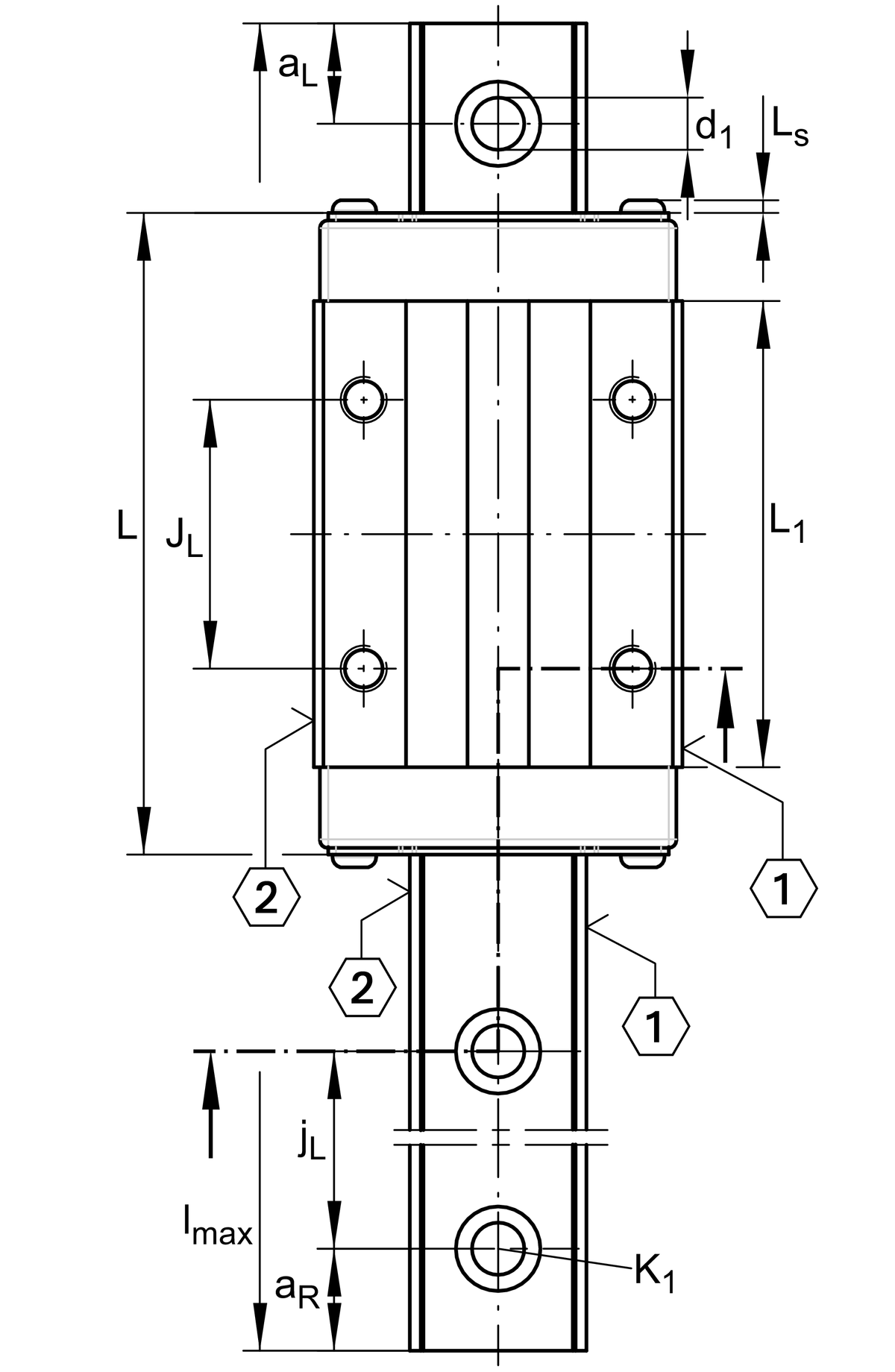

L1
|
132 mm
|
|
LS
|
2.2 mm
|
|
JL
|
75 mm
|
|
H1
|
13.5 mm
|
|
H5
|
11.25 mm
|
|
T5
|
15 mm
|
|

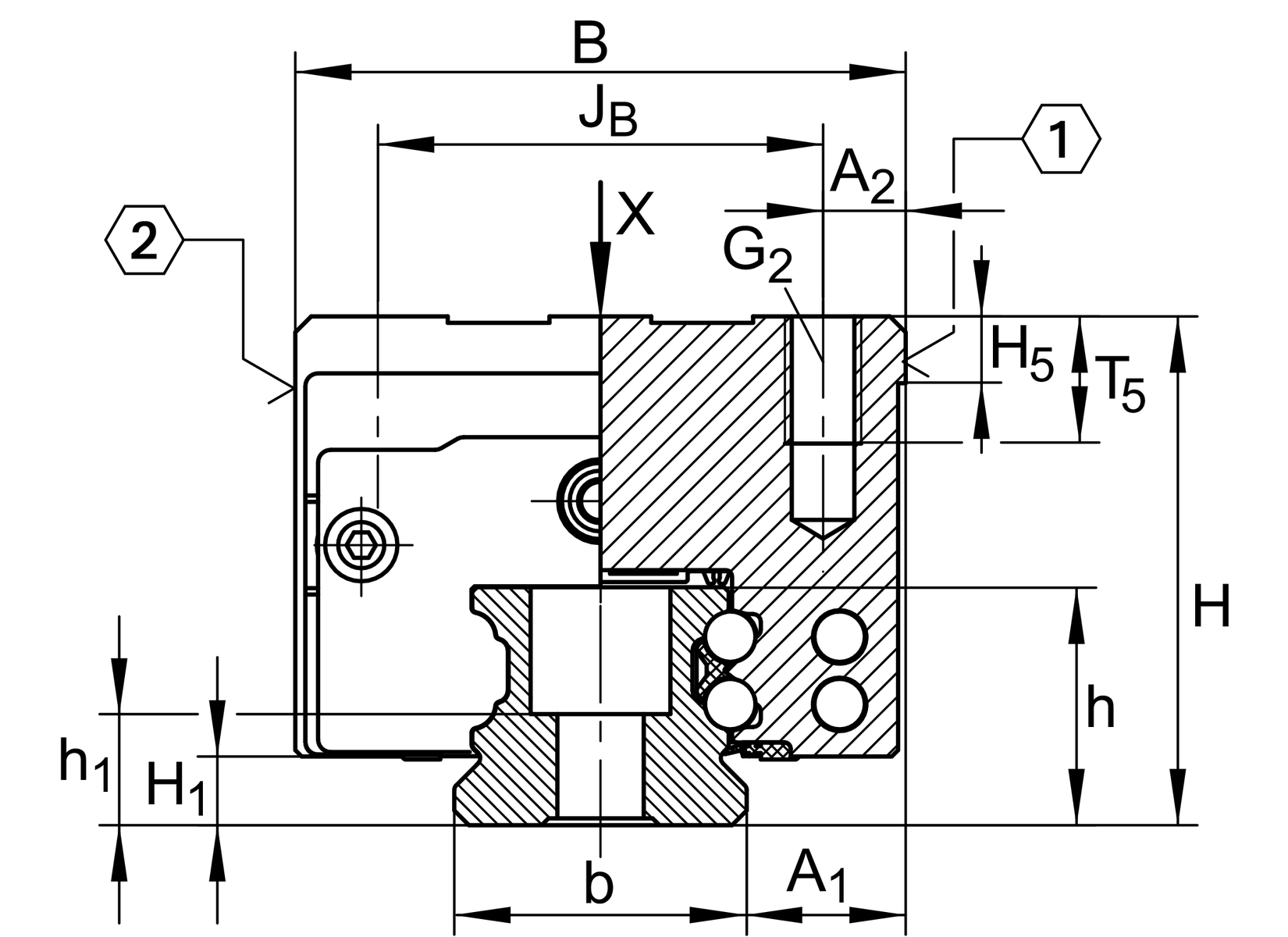

G2
|
M12
|
fixing screws below (DIN ISO 4762-12.9)
|
G2MA
|
140 Nm
|
maximum tightening torque
|
A3
|
15 mm
|
position lubrication connector
|
G3
|
M6
|
lubrication connector
|
tG3
|
7 mm
|
maximum permissible screw depth for lubrication connectors
|
A4
|
15 mm
|
position lubrication connector
|
G4
|
M6 mm
|
lubrication connector
|
tG4
|
7 mm
|
maximum permissible screw depth for lubrication connectors
|

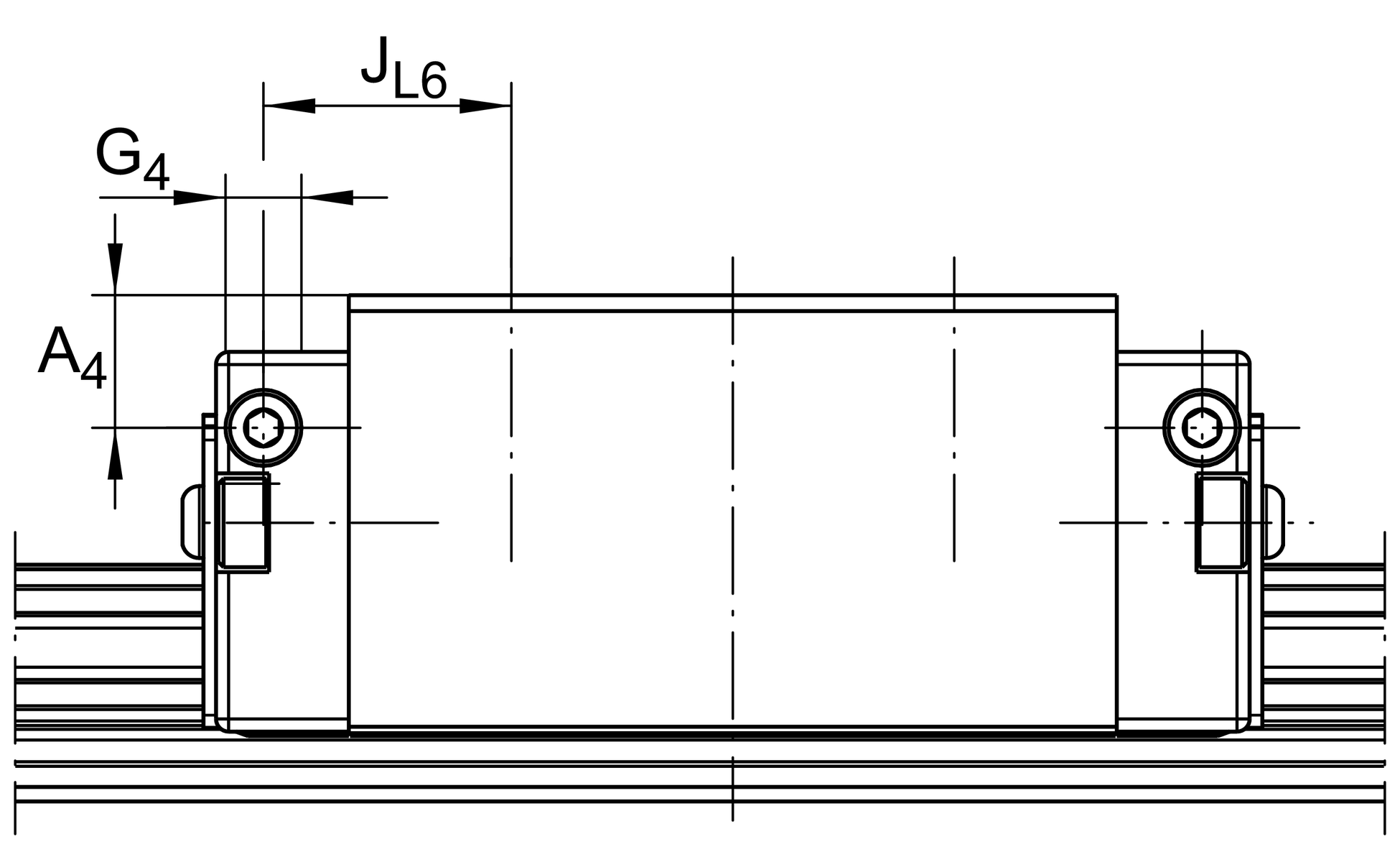

JL6
|
40.5 mm
|
position lubrication connector
|
