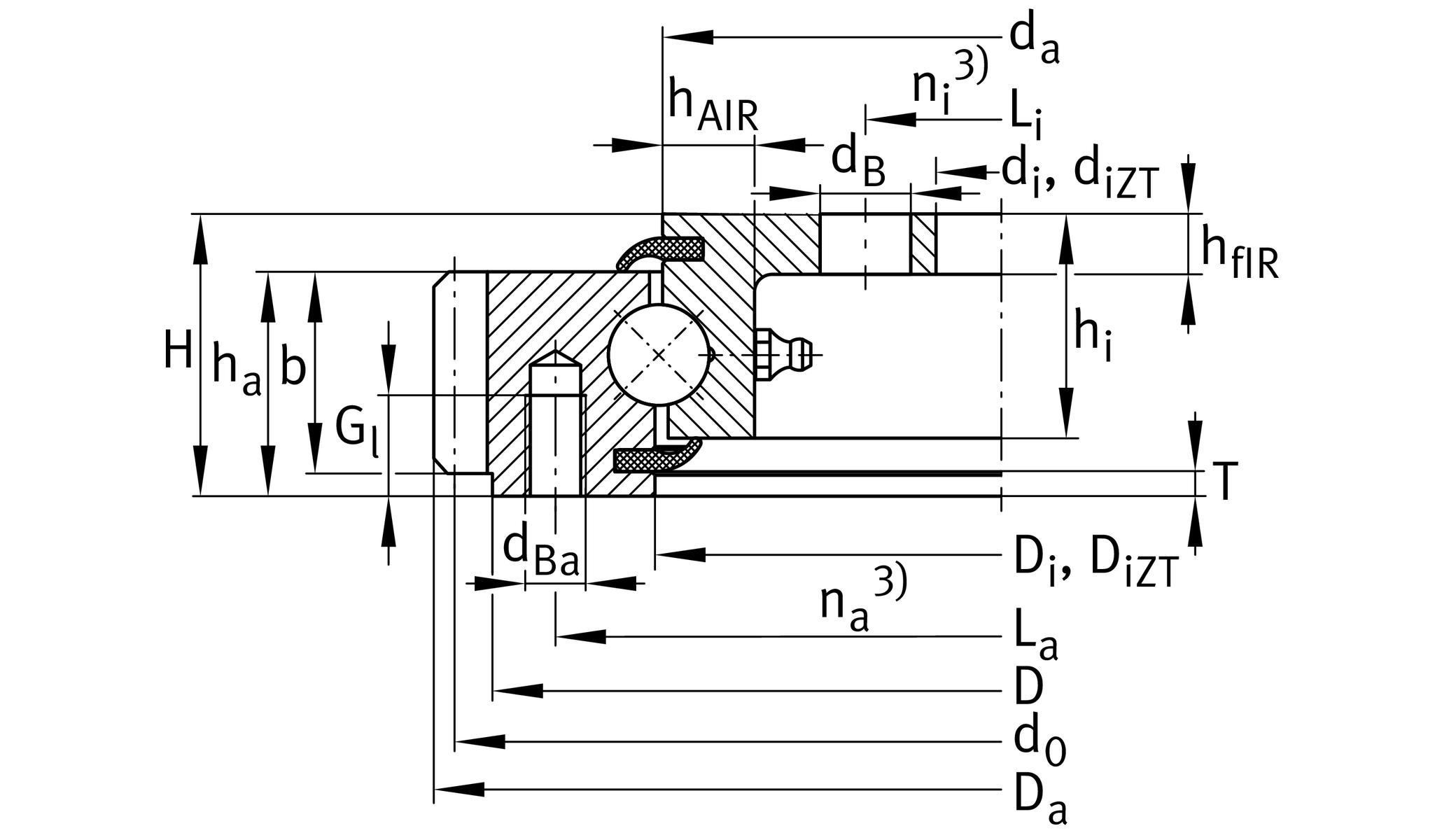

da
|
412.5 mm
|
Outside diameter inner ring
|
|
0 mm
|
Outside diameter inner ring upper tolerance
|
|
-0.5 mm
|
Outside diameter inner ring lower tolerance
|
ni
|
12
|
Number of fixing holes in inner ring
|
Li
|
332 mm
|
Pitchcircle diameter fixing holes inner ring
|
dB
|
18 mm
|
Fixing bore
|
na
|
10
|
Number of fixing holes in outer ring
|
La
|
455 mm
|
Pitchcircle diameter fixing holes outer ring
|
d Ba
|
M12
|
Tread fixing bore
|
Gl
|
20 mm
|
Thread depth fixing hole
|
h AIR
|
20 mm
|
Ring cross section
|
Fr zul
|
51,000 N
|
Max. radial load screws
|
d0
|
495 mm
|
Pitch circle diameter gearing
|
m
|
5 mm
|
Modul of gearing
|
z
|
99
|
Number of teeth
|
b
|
40 mm
|
Width gearing
|
D
|
480 mm
|
Offset diameter outer ring
|
|
0 mm
|
Offset diameter outer ring upper tolerance
|
|
-0.5 mm
|
Offset diameter outer ring lower tolerance
|
Fz norm
|
15,900 N
|
Max. tooth force root fatigue strenght (at a shock factor of 1,2)
|
Fz max
|
23,600 N
|
Max. tooth force against tooth fracture (at a shock factor of 1,35)
|
