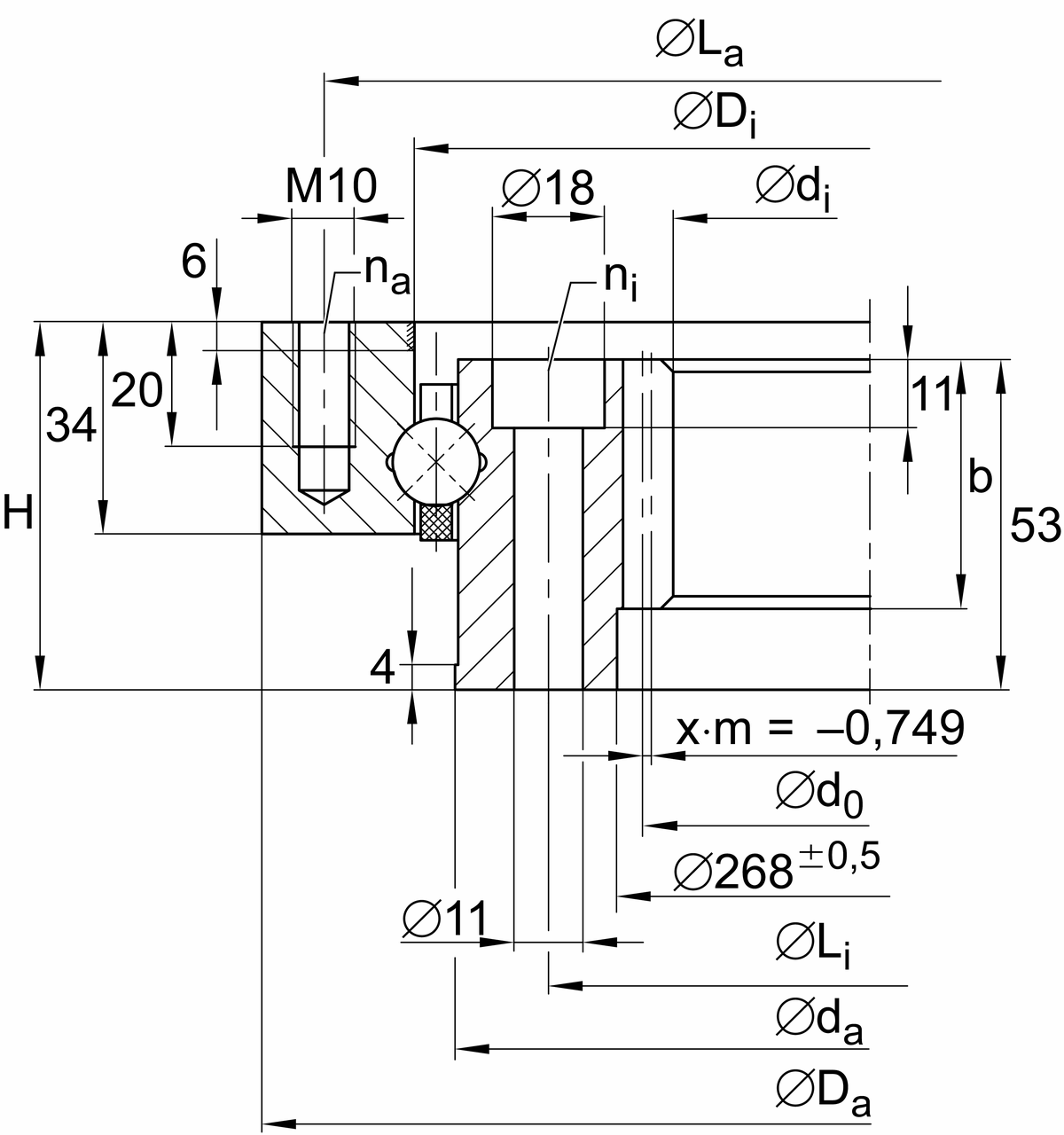

Di
|
333 mm
|
Inner diameter outer ring
|
|
0.057 mm
|
Inner diameter outer ring upper tolerance
|
|
0 mm
|
Inner diameter outer ring lower tolerance
|
La
|
362 mm
|
Pitchcircle diameter fixing holes outer ring
|
na
|
8
|
Number of fixing holes in outer ring
|
dB
|
11 mm
|
Fixing bore
|
|
18 mm
|
Counterbore diameter of fixing holes
|
|
11 mm
|
Counterbore depth of fixing holes
|
da
|
320 mm
|
Outside diameter inner ring
|
|
0.04 mm
|
Outside diameter inner ring upper tolerance
|
|
0.004 mm
|
Outside diameter inner ring lower tolerance
|
Li
|
290 mm
|
Pitchcircle diameter fixing holes inner ring
|
dBi
|
M10
|
Tread fixing bore
|
Gl
|
20 mm
|
Thread depth fixing hole
|
ni
|
8
|
Number of fixing holes in inner ring
|
Fr zul
|
55,000 N
|
Max. radial friction locking of the screws
|
m
|
3.5 mm
|
Modul of gearing
|
z
|
73
|
Number of teeth
|
|
-0.749
|
Profile shift
|
d0
|
255.5 mm
|
Pitch circle diameter gearing
|
b
|
40 mm
|
Width gearing
|
d1
|
268 mm
|
Diameter turning inner ring
|
|
0.5 mm
|
Diameter turning inner ring upper tolerance
|
|
-0.5 mm
|
Diameter turning inner ring lower tolerance
|
Fz norm
|
10,800 N
|
Max. tooth force root fatigue strenght (at a shock factor of 1,2)
|
Fz max
|
16,100 N
|
Max. tooth force against tooth fracture (at a shock factor of 1,35)
|
