da min
|
44 mm
|
Shaft shoulder minimum diameter
|
r min
|
1.5 mm
|
Minimum chamfer size
|

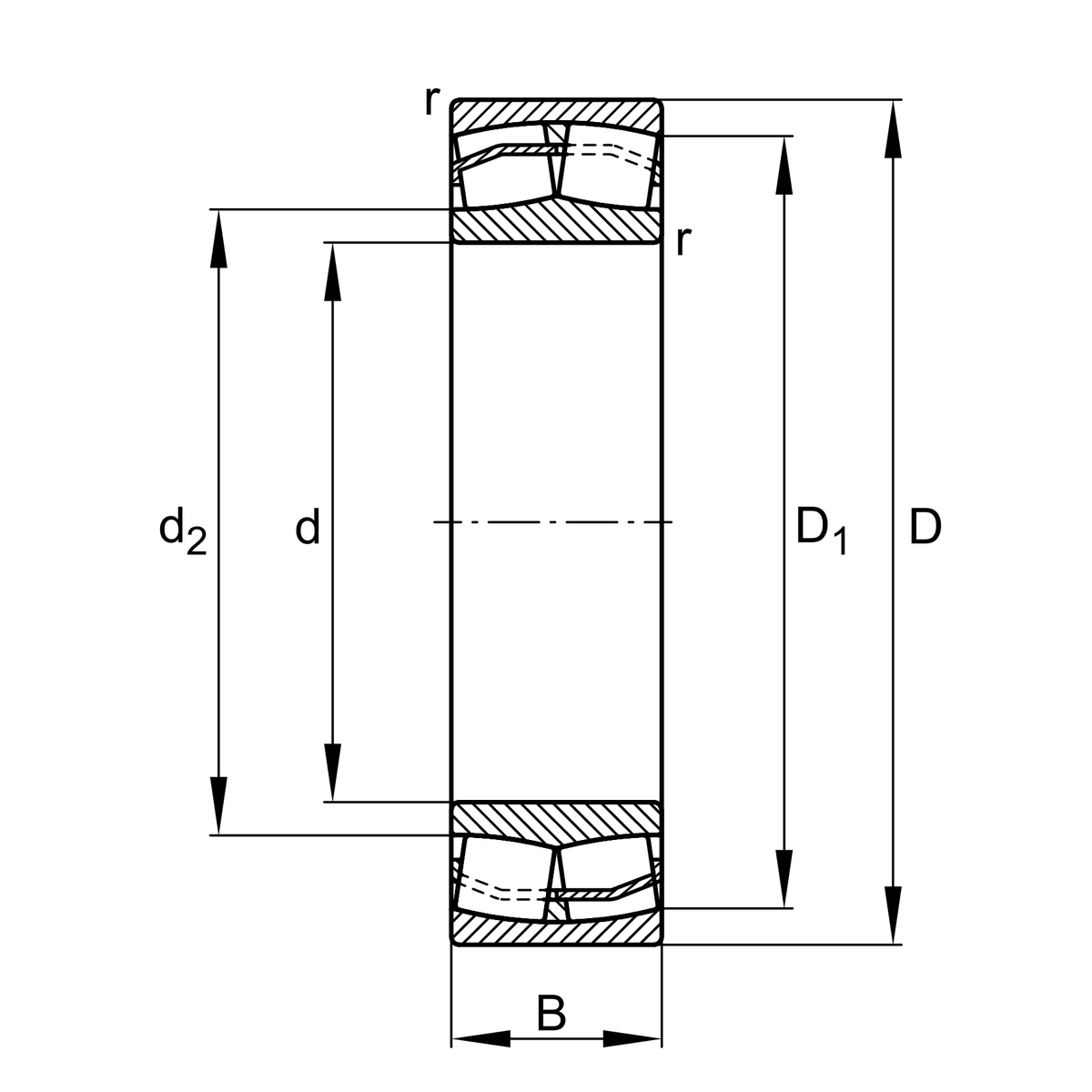

D1
|
66.6 mm
|
Outer ring inner diameter
|
Da max
|
71 mm
|
Maximum diameter of housing shoulder
|
ra max
|
1.5 mm
|
Maximum pocket radius
|
Ba min
|
8 mm
|
Bushing minimum cavity width
|
d2
|
47.4 mm
|
Inner ring raceway diameter
|
da max
|
47 mm
|
Shaft shoulder maximum diameter
|
db min
|
39 mm
|
The minimum cavity diameter of the bushing
|
