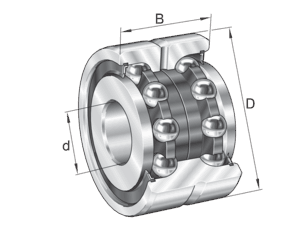

Main Dimensions & Performance Data

d

 6 mm

D

 24 mm

B

 15 mm

Ca

 6900 N

Coa

 8500 N

Cua

 N

Reference speed

 6800 rpm

Limiting speed

 16400 rpm

Mounting dimensions

Da max

 19 mm Maximum diameter of bearing housing

d1

 14 mm Inner ring rib diameter

r min

 0.3 mm Minimum chamfer size

da min

 9 mm Shaft minimum diameter

r1 min

 0.6 mm Minimum chamfer size

α

 60 ° Contact angle

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 120 °C Maximum operating temperature
