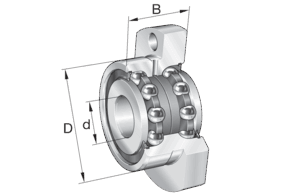

ZKLFA0630-2Z - Thrust ball bearing

Request Information Return to list

d1	12 mm	Inner ring rib diameter
r min	0.3 mm	Minimum chamfer size
r1 min	0.3 mm	Minimum chamfer size
B1	5 mm	Flange thickness
d2	3.5 mm	Fixed hole diameter
J	24 mm	Pitch diameter (hole)
A	22 mm	Flange width
da min	9 mm	Shaft shoulder minimum diameter
da max	15 mm	Shaft shoulder maximum diameter
t1	0.1 mm	position tolerance
	M3	Bolt size
na	4	Number of screws

T min	-30 °C	Minimum operating temperature
T max	120 °C	Maximum operating temperature

d
